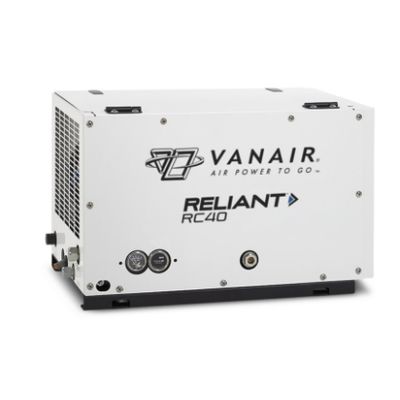

Vanair - Model RC40 -Hydraulic Driven Reciprocating Air Compressor
Providing a full 40 CFM of air, at up to 175 PSI, the RC40 provides you with the most CFM for the cost in the market. Reliable and field-proven, the RC40 has been the go-to hydraulic driven reciprocating air compressor for mechanic and service technicians for over 10 years. Featuring an integrated cold weather package that will work in any type of climate, the RC40 has been designed to provide flexible mounting configurations and for easy maintenance.
Most popular related searches
pressure relief safety valve
pressure relief valve
reciprocating compressor
relief valve
air compressor system
safety relief valve
air release valve
moisture separator
vibration isolation
safety system
| Capacity (CFM) | Air Pressure (PSI) | Hydraulic Flow (GPM) | Hydraulic Pressure (PSI) |
| 30 | 100 | 9.5 | 1775 |
| 30 | 125 | 9.5 | 1875 |
| 30 | 150 | 9.5 | 2100 |
| 30 | 175 | 9.5 | 2200 |
| 40 | 100 | 12 | 1950 |
| 40 | 125 | 12 | 2070 |
| 40 | 150 | 12 | 2175 |
| 40 | 175 | 12 | 2275 |
PERFORMANCE/FEATURES
- 30-40 CFM and Up to 175 PSI
- 12V DC Model Available
- Open Center or Closed Center Hydraulic Manifold Block
- Vibration Isolation on Air Compressor and Drive System for Quiet Operation
- Four-Pin Weatherproof Electrical Connection
- Rugged, Cast Iron Crankcase
- Corrosion-Resistant Steel Valves
- Tapered Roller Type Main Bearings
- Balanced Crankshaft
- Weight-Matched Balanced Pistons
- High Flow Valves
- Lightweight Connecting Rods
-
3-in-1 Air Compressor Manifold for Less Potential Leak Points
- Air pressure Relief Safety Valve and Automatic Blow Down on Shut Down
- Hydraulic Oil Pressure Relief Valve
COLD WEATHER PACKAGE (OPTIONAL)
- Integrated System with Thermal Valve
- Premium Pressure Switch
- Braided Stainless Steel Hose
- Hour and Pressure Gauges
-
Flexible Gauge Placement for Best Configuration on Your Vehicle
-
Flexible Mounting Options for the Hinge on the Hood for Best Opening Configuration
-
Attachment Free Panels for Easy Removal and Maintenance Work
-
Heavy-Duty Powder-Coated, Galvanneal Sheet Metal Enclosure
- Air Pressure Relief Safety Valve
- Hydraulic Oil Pressure Relief Valve
- Automatic Blow-Down on Shutdown
- 20 – 60 Gallon Air Reservoirs
- Aftercoolers
- Air Hoses
- Air Tools
- Hose Reels and Fittings
- OSHA Excess Flow Safety Valve
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
- Service Airline De-Icer
- Filter Regulator Lubricator (FRL) 1/2”
- 24 VDC to 12VDC Converter; IP68 Rated (Required When Installing on a 24VDC Chassis)
