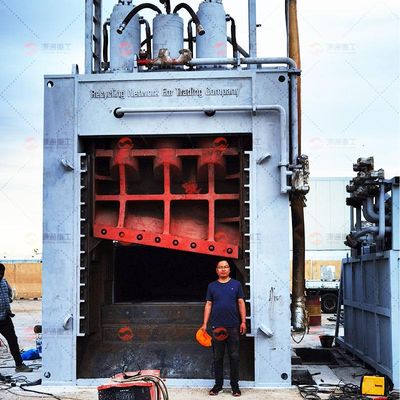

Yuantong - Model Q91Y Series -Hydraulic Gantry Scissors Shear
Gantry shearing machine, suitable for metal recycling processing plants, scrap car dismantling plants, renewable resource material recycling industries, for various shapes of color steel tiles, bicycle racks, motorcycle racks, scrap car iron sheets, hydraulic oil drums, refrigerator iron sheets , TV shells, angle steel, channel steel, small briquettes, domestic scrap steel, light metal structural parts, various plastic non-ferrous metal stainless steel, aluminum alloy, copper, etc., and other metal structures are cut in cold state and processed into qualified charge .
Most popular related searches
hydraulic shear
non-ferrous metal
materials recycling industry
metal recycling system
car recycling
car dismantling
metal recycling plant
recycling system
scrap steel
recycling industry

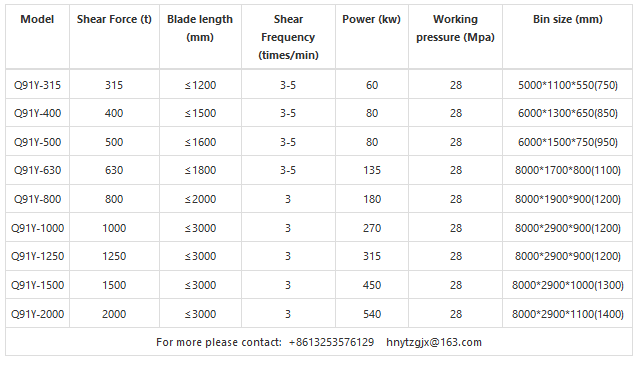

- Power: 74-460kw
- Blade length: 1400-3000mm
- Bin size: The width of the material box is generally the width of the blade, and the length is 6m or 8m.
Precautions for starting the metal hydraulic gantry shearing machine
- Start the hydraulic gantry shearing machine for a few cycles of idling to ensure that under normal conditions, try to cut sheets of different thicknesses, from thin to thick. Ensure that the user is familiar with the performance of the shears.
- It is necessary to adjust the gap of different blades when the thickness of the plate is different during the trial cutting. If the corresponding blade gap is not adjusted, the durability of the blade will be affected.
- Turn on the pressure gauge switch during the cutting process of the hydraulic gantry shearing machine and observe the pressure value of the oil circuit. The pressure should be less than 20MPa when cutting a 12mm plate. The user needs to comply with this regulation, and the material that exceeds the specified thickness and cannot be cut can not be cut, causing damage to the machine.
- Sound balance during operation. If the hydraulic gantry shearing machine has noise, stop and check.
- When the hydraulic gantry shearing machine is operating, it will shut down and rest when the fuel tank temperature is 60 degrees.
