Evans Engineering - Hydraulic Lift Bin Tippers for Waste Handling
Bin Tippers, also known as bin lifters or cart dumpers, are designed primarily for waste management but are applicable across various industries including food processing, chemical production, and facility management. Evans Engineering has extensive experience in designing and manufacturing these machines, which are crucial in lifting and inverting bins to facilitate the emptying process. Our bin tippers are powered by a hydraulic lifting system and are available in standalone units that can be customized to fit specific bin sizes and lifting heights up to 2 meters. They come equipped with a steel frame, motorized lifting mechanisms, and various means of securing the bin during operation, such as hydraulic pincers or base-lift cradles. These machines offer flexibility in their design, allowing them to be integrated with existing machinery or used in confined spaces as needed.A Bin Tipper, also known as a bin lifter or cart dumper, is a special bit of machinery, which mechanically lifts and inverts bins/carts in order to empty them.
Bin tipper is a type of lifting device used by different industries, including waste management, food processing, chemical production and facility management.
Although bin tipper are typically an integral part of a larger machine (for example, garbage trucks), there is a growing need for a standalone or mobile unit. Evans Engineering design and manufacture a standalone unit that can be made to suit your particular size bin and lift and tip to a lip height of up to 2 meters.
Our bin tipper uses mains electrical energy to power the hydraulic lifting system.
- 3 Kw (4 Hp) Electric Motor (3 Phase)
- 15—20 seconds Full Travel Speed
- Safe and Low Maintenance Design
- 150 Kg Bin Weight Capacity
- 1—2 meter tipping point height
- Hurricane Safety Mesh
- Electronic on/ off Controls
- Hydraulic lever controls
- Stationary application
- Plug in and use

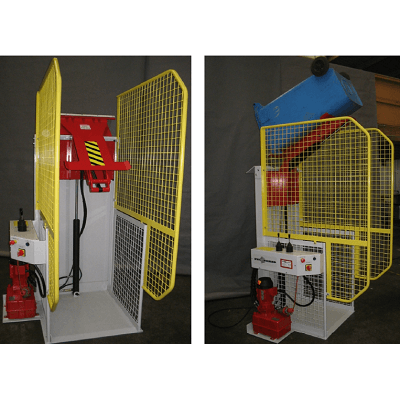

Bin tippers usually have a steel frame, guarding and cradle, with a motor driving a lifting mechanism, which is hydraulic. 120 litre or 240 litre Bins are placed into the device, then raised and inverted over the location receptacle, permitting the contents to be emptied by gravity.
Bin tippers may likewise utilize different non-standard means to protect the bin, including hydraulic pincers, or base-lift cradles with wheel latches or chain fastenings.
Evans Engineering can design and manufacture Bin Tippers to fit with existing machinery. Our Bin Tippers are created to custom specifications and can fit in limited space available.
- Portable, able to be moved as required and powered by a plug and 3 phase power
- Safe and simple to operate with lever control
- Takes 120 litre and 240 litre wheelie bins with 150kg maximum lifting weight
- Made to suit any tipping height up to 2 meters
