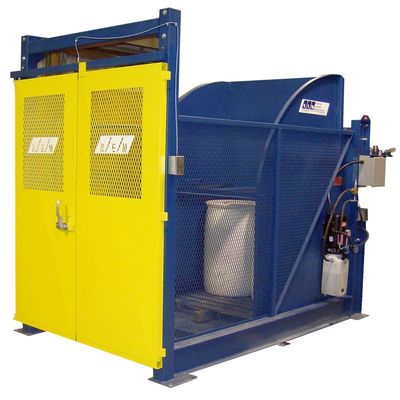

REM - Model HDL Series -Hydraulic Lift for Dumping
Lift and dump materials from carts, bins, gaylords, or other containers, with this unique and versatile container lift from REM. This unit is designed for side loading of materials onto REM‘s SC Sorting Conveyors, or as a feed for a conveyor, shredder, crusher, or other processing equipment. Simply load containers onto the lift and use the convenient foot switch to elevate to an approximate 35-degree tipping angle (45 degree angle available as an option). REM‘s HDL-2 increases worker productivity, reduces back-strain and lowers contaminant levels from its very first day of operation.
Durable Construction
Built for your most demanding applications, this rugged unit is capable of lifting containers weighing as much as 2,000 lbs. The HDL can be built to accommodate containers up to 60″ wide, with discharge heights up to 60″ tall. REM‘s unique heavy duty I-Beam structural frame design is built to reinforce the cylinder support blocks and help center the load. An adjustable retaining rod holds the container in place as it tips.
For even more lifting power, check out our Heavy-duty HDL, below.
- Helps avoid back strain and injury
- Lifts up to 2,000 lbs. (5,000 lbs. capacity available)
- Handles containers up to 50” wide x 55” tall (std)
- Adjustable retaining bar: seven (7) positions from 24” to 55” (standard 44” discharge unit)
- OSHA-required flow-control valves
- Power-up/gravity-down operation (manual checkvalve for return to loading position)
- Convenient push-to-start/release-to-stop foot switch with 10’ cord for operator convenience and safety
- Heavy duty I-Beam frame
- All-steel construction
- 2.5 GPM/2 hp power pack
- Dual hydraulic cylinders
- Flange mount bearings
- Cycle time under 40 seconds
- Hardened steel bushings at pivot points
Dimensions: HDL
- Standard 44” Discharge Unit
- Height: 59”
- Length: 67”
- Width: 66”
- Approx weight LBS.: 1200
- Maximum height raised: 9’ 10”
- Discharge height: 44”
- 240/480 volt, three phase
- Electrical components are UL listed
- NEMA-4 (hose proof) enclosure
- Motor overload/short circuit protection
- 220 volt single phase
- 208, 380, 415, 480, or 575 volt, three phase
- Power cord
- 45 degree tipping angle power up, power down
- Other power packs available
- Custom container widths up to 60”, discharge heights up to 60”
- If you don’t see it, ask us!
