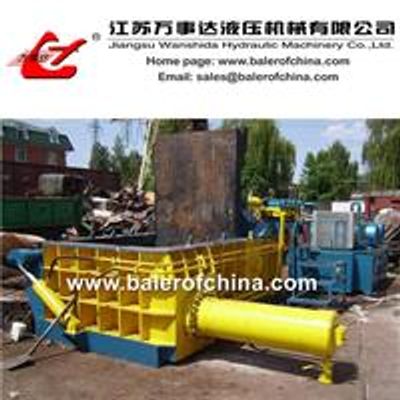

The Y83-200 Wanshida Metal Baler is mostly applicable for metal smelting factory with medium output, as well as the waste metal recycling station. It is a manually operated machine. Its compress room size can be chose 1600x1200x800mm and 1800x1400x900mm as customers like. The dimension of the compressed bale is about 400x400mm in size.
Based on the demands of customers, the waste scrap metal baler can be matched with 37kW or 44kW power supply. It’s output is able to reach 4-6tons per hour. More information please contact our sales department.
Technical Specifications:
Waste Steel Bailer-Turn out
Model: Y83-200
Cylinder pushing /shearing force: 200 ton
Maximum working pressure: 25MPa
Capacity: 4-6 tons/h
Compress room size: 1600×1000×800mm
Bale dimensions (LxWxH): (~500)×400×400mm
Theoretical dry cycle time: 100 sec.
Max. thickness can be press: 4.5 mm
Motor: 37 kW
Baler dimensions (LxWxH): 4680×3000×2450 mm
Weight: 15000KG
