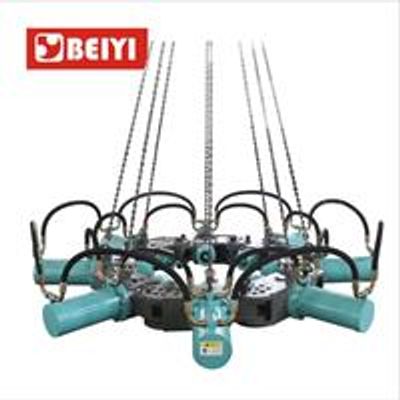

Lydite - Model MK180S -Hydraulic Pile Breaker / pile cutter pile breaking machine for round concrete piles

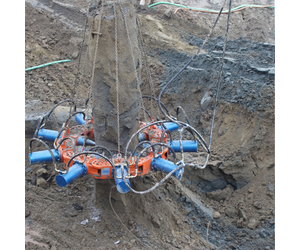

BEIYI MACHINERY Hydraulic pile breaker/pile cutter, pile breaking machine, can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-2200mm and hydraulic square pile breaker is suitable for square piles from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction. 1. It has the advanced modularization and break different diameter pile by different number of modular combination. 2. low operating cost, nearly the same with the foreign products. 3. Operates easily and safely. don’t need any professional skill 4. It can be connected to a variety of engineering machinery. it also can be hanged in the excavators, cranes and telescopic arm, etc. wxbychina@163.com www.wxbychina.comMost popular related searches
| Module Number | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |
| Combination total weight | kg | Remark Need to add the connecions 1600 | 2624 | 2952 | 3280 | 3608 | 3936 | 4264 | 4592 | 4920 | 5248 | 5576 | 5904 |
| Pile diameter range | mm | 200-800 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20-30T | 30-40T | Hydraulic system/pump station | |||||||||
| Max Thrust | 300KN | Max Cylinder required | 20L/min | Machinery Tonnage | ≥20t | ||||||||
| Max Cylinder Trip | 300mm | Chisel diameter | 110mm | Single module weigt | 328kg | ||||||||
| Max Cylinder Pressure | 30MPa | Max Hoist Capacity | ≤500mm | Single module size | 885*780*340mm | ||||||||
