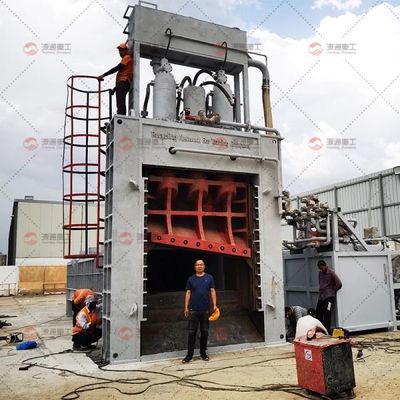

Yuantong - Model Q91Y Series -Hydraulic Scrap Shearing Machine

• Power: 74-460kw
• Blade length: 1400-3000mm
• Bin size: The width of the material box is generally the width of the blade, and the length is 6m or 8m.

The main sheared material size (12~20mm)*250mm. The cutting frequency is 8~12 times per minute. This series requires simple infrastructure. Adopting hydraulic drive, compared with mechanical transmission shears, it has the characteristics of small size, light weight, small motion inertia, low noise, stable operation, flexible operation, and large shearing section. Hydraulic and electrical integrated control, single and continuous action conversion, easy to use, stop and run at any working position, easy to realize overload protection. It has a wide range of applications. It can be used not only as processing equipment for metal recycling and processing units, but also as metal shearing processing equipment for furnace material processing in foundry workshops and mechanical construction industries.

This product uses hydraulic cylinders to shear materials. When working, the rotation of the motor drives the oil pump to work, extracts the hydraulic oil in the oil tank, transports it through the hydraulic oil pipe, and sends it to each hydraulic cylinder, driving the piston rod of the oil cylinder to move laterally to cut waste of various sizes.

Such as round steel, square steel, channel steel, angle steel, I-beam, steel plate, steel pipe, scrap car iron sheet, hydraulic oil drum, refrigerator iron sheet, TV case, angle steel, channel steel, small briquettes and other scrap metals.

1. Hydraulic gantry shears adopt hydraulic transmission. Compared with mechanical transmission shears, they have small size, light weight, low inertia, low noise, stable movement, convenient operation, flexibility, large cutting surface, and easy adjustment of the scissors. Advantages, safe operation and use, easy to achieve overload protection.
2.  Hydraulic gantry scissors have manual, automatic, and remote control functions. The operation and control are convenient and simple. The scissors can start and stop at any position during the working process, and can arbitrarily control the cutting position according to the size of the material to be cut. size for economical work efficiency.
3. The gantry shear is designed with a fast type. Without increasing the power of the motor and the displacement of the oil pump, the speed remains fast under shear (about 400-3000 tons), and the speed will be automatically switched when cutting larger materials. Restore the original shear force, thereby improving the work efficiency by nearly double.
4. Hydraulic gantry shear belt quick device. Without increasing the power of the motor and the displacement of the oil pump, a fast circuit is designed to increase the shearing speed from 8 times per minute to 12 times per minute (the number of times when the scissors open their mouths), which nearly doubles the work efficiency. This function is unique among the counterparts in the country.
