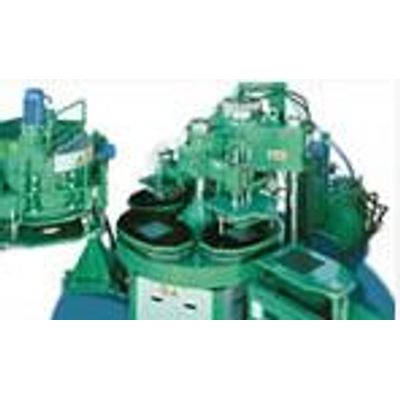

Longinotti - Model K754 MS e K754 MS/SC -Hydraulic Single Layer Presses
The 4-station press mod. K754/MS is designed for the moulding of MS single-layer tiles for indoor or outdoor application up to the size 600×600 mm by using the Longinotti patented system for evacuation of the excess of water from the wet mix through the special draining and filtering pressing pads.
Most popular related searches
- Moulding force: up to 750 tons
- Productivity: up to 130 m²/h
- The new system allows the switching of production from indoor tiles to outdoor ones by simple and quick replacement of the mould polyurethane bottom.
- Frame of sturdy steel construction
- Hydraulic unit specially designed for reduced energy consumption, with proportional programmable valve which allows a step-like pressing for optimal compacting.
- Revolving of the table by means of large-diametre toothed wheel and pinion, driven by geared motor fed by inverter.
- Moulds vibrators of 1500 W each; the intensity of vibration is adjustable from the control board.
- Automatic dosator of the wet mix with hydraulic tightening between cups and shutter plates. Large-diametre dosating cups, internally chromium-plated and adjustable in volume.
- Switch-and control board with PLC SIEMENS S7
- The K754 MS/SC version furthermore allows for the moulding of MS single-layer slabs up to the size 1350×370 mm and with thickness from 25 to 50 mm to be eventually processed into steps.
