Luoyang Hongteng Electrical Equipment Co., Ltd.

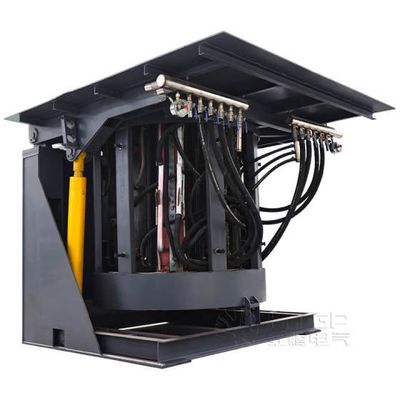

HTGP - Hydraulic Tilting Aluminum Melting Furnace
The hydraulic tilting aluminum melting furnace is engineered for efficient aluminum melting processes, including an array of inputs such as powders, chips, and scraps. It is electrically powered, which minimizes pollutant emission, and features a prefabricated crucible for simplified installation and operation. The furnace's inclination is adjustable from 0 to 90 degrees, enhancing its versatility in different casting applications. Its stable rotation mechanism ensures minimal vibration during the pouring process, thereby maintaining a safe environment for operators. A critical safety feature is its automatic alarm device that swiftly cuts off power in case of liquid leakage, preventing severe damage. This furnace integrates seamlessly with automatic aluminum ingot production lines, supporting continuous casting operations. It accommodates varying capacity needs, ranging from 0.5 to 15 tons, with a melting time between 60 and 90 minutes, and maintains a high recovery rate of approximately 92%.Most popular related searches
- Crucible prefabricated: Much easier to install and operate;
- Inclination angle: 0 - 90° and controllable;
- Environmentally friendly: Powered by electricity, less pollutants;
- Stable rotation: Slight vibration when pouring the molten aluminum into the casting mold to keep the workers safe;
- Automatic alarm device for liquid leakage: Quickly and automatically cut off the power to avoid severe damage to the furnace if leakage happens.
- It is suitable for melting all aluminum materials, including powder, chips, scraps, etc.
- It can be combined with an automatic aluminum ingot production line to realize the aluminum ingot's continuous casting.
- The furnace can be applied for a horizontal aluminum rod continuous casting production line.
