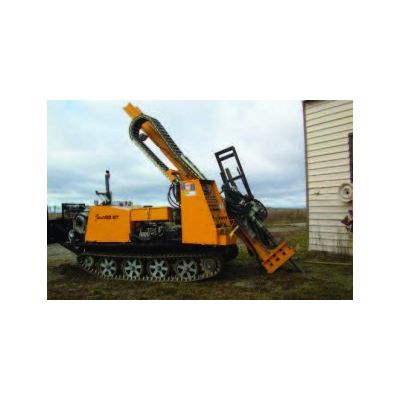

Geomachine - Model GM100 -Hydraulic Track Mounted Remote Controlled Multi-Purpose Drill Rig
The GM100 is a fully hydraulic, rugged and mobile multi-purpose drill rig for Environment and Geotechnical site investigation, Exploration Drilling, Rock Drilling with Air or Core Drilling.
Most popular related searches
soil sampling system
drilling rig
soil sampling
diamond core drill
cone penetration test
geotechnical site investigation
core drilling
air drill
drilling rock
rock drilling
The crawler can be simultaneously equipped for several methods:
- Percussive drilling with top hammer
- Diamond core drilling with BQ, NQ
- Drilling with casing tubes as well as Symmetrix using air
- SPT/Dynamic probing and CPT: Cone Penetration Testing
- Sampling with ie: morain, auger-samplers, piston-samplers
The GM100 is designed for rough field conditions. Its movements are nimble even in very soft terrain and tight situations due to well balanced length/width of tracks.
- Hydraulic rod clamps
- Remote control for drive and winch
- Top driven diamond coring unit
- Impact unit for SPT (dynamic probing with adjustable falling height)
- Rock air drilling
- 375 CFM compressor
- 140 lbs weight, standard 30” stroke
- All moving parts, including the 140lb (64 kg) weight are fully enclosed in a protective steel cabinet
- No cables or ropes needed for operation
- Split Spoon Samply System
- DT325 Soil Sampling System
- DT22 Soil Sampling System
- MC5 Soil Sampling System
- SP16 & SP22 Ground Water
- 5” Solid Stem Augering System
- Basal Till Sampling System
