Grande - Model SURE-BEND -Hydraulically Operated Folding Weir System
The SURE-BEND hydraulically operated folding weir system is designed to maintain maximum water levels upstream of the weir, allowing full utilization of all available upstream storage volume without affecting overflow weir capacity in combined sewer overflow (CSO) applications. The SURE-BEND`s unique and extensively tested design works by only allowing any excess water in the system to reach the receiving watercourse, but only after the design upstream water level has been reached. This increases reservoir and sewer storage volume and reduces the frequency and volume of overflows, leading to less water pollution. This enables the SURE-BEND to overcome the disadvantages inherent in fixed weirs. The SURE-BEND protects against backflow as it is normally in the closed position.
The SURE-BEND allows for installation in new overflow structures or can be retrofitted directly over existing fixed weirs. The following components are required and included in the SURE-BEND Hydraulically Operated Bending Weir System: the bending weir flap, the sleeve bearings, the supports, the guide walls, the anchoring system, the hydraulic cylinder, the hydraulic power unit, the control panel, the ultra-sonic water level sensor and the inclinometer.
- Positive hydraulic control
- No lower clearance required
- Maximizes on-site storage
- Easily adjustable performance level
- Reduces overflow frequency
- Prevents backflows
- Improved hydraulic quality line
- Lower storage tank construction costs thanks to smaller volumes
- Easy to adapt to existing installations
- Stainless steel construction
The SURE-BEND Hydraulically Operated Bending Weir System can vary from a model GSB-30 to GSB-100. The GSB-30 is designed to hold back 12 inches (30 cm) of water over the weir crest and the GSB-100 holds 40 inches (100 cm) of water over the weir crest. The SURE-BEND’s model selection is based entirely on the height of the storage water required. The units are modular in design with a single unit being up to 20 feet (6 m) long. The hydraulic capacity of the SURE-BEND is at least equal to that of a standard overflow weir.

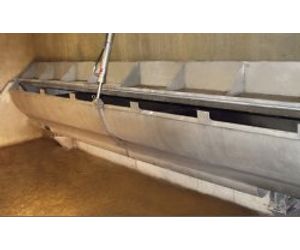

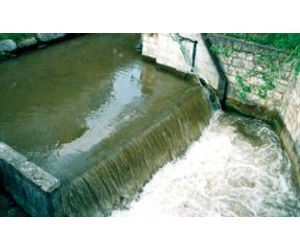

The hydraulically operated SURE-BEND weir is installed on the downstream side and directly along the entire length of the weir opening. The SURE-BEND adapts to the overflow by pivoting at the bottom and opening at the top.

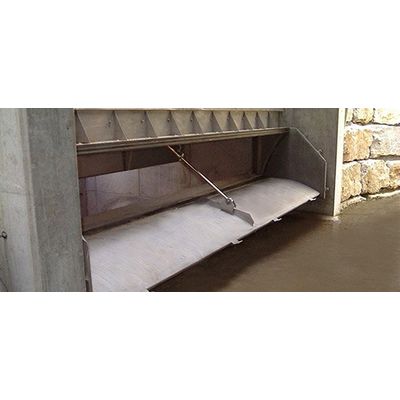

The SURE-BEND is equipped with one or more hydraulic control cylinders. These hydraulic cylinders act against the spillway flap to adjust the upstream water level to the desired height under all flow conditions. In the event of a power outage, the SURE-BEND hydraulic control spillway is designed to remain fully open and function as an emergency overflow. Upstream and downstream water levels are continuously monitored.
