Hydro-Rain - Model HRC 100 -Wireless Rain/ Rain Freeze Sensor
FromHYDRO-RAIN

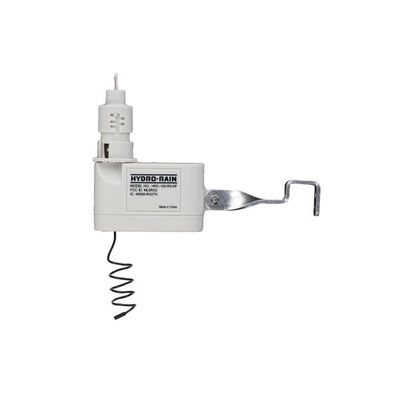

Hydro-Rain’s HRC 100 wireless rain and freeze sensor saves water by automatically suspending irrigation watering cycles when it rains or freezes or both!
Most popular related searches
rain sensor
water cycle
water metering
water meter
remote sensor
sprinkler maintenance
water activity
water saving
water sensor
- Easy No Tools Required—Rain gutter mount bracket is equipped with a tool free bolt system that is both quick and intuitive to install.
- Adjustable Moisture Activation—1/8", ¼", ½", ¾", 1" rainfall settings for variable climates.
- Hygroscopic Discs—Absorb water to activate rain switch.
- Reliable Freeze Sensor Option—Shuts off timer when temperature drops to 37°F, protecting vegetation from the effects of freezing water.
- Universal—For use with most brands of 24 Volt sprinkler timers.
- Quick Rain Gutter Mount—No tools required for mounting the sensor to a rain gutter.
- Constant Communication—Every 30 seconds, (HRC 300/390 models), a signal between the transmitter and receiver for accurate timed water metering. All other timers transmit updated signal every 15 minutes.
- Transmission Range—Over 300 feet (91.4 m) line of sight.
- Manual Bypass Control—Allows for deactivation during sprinkler system maintenance.
- Dry Vent—Allows air to be circulated or dampened for fast or slow dry, effectively reducing time for the next watering cycle.
OPERATING SPECIFICATIONS
- Sensor Type: Industry-standard hygroscopic discs
- Rain Sensitivity: Adjustable nominal 1 ⁄8" to 1" (3-25mm)
- Freeze Sensitivity: 37°F (2,7°C) +/- 3°F
- Operating Temperature: 14°F to 140°F (-10°C to 60°C)
- Housing Material: UV-resistant engineered polymer
- Receiver Power: 22-28 VAC
- Transmitter Power: Two CR2032 3V cell, 5-year life (typical use)
DIMENSIONS
- Transmitter: Height: 4" (10,1 cm)
- Length: 3.15" (8,0 cm)
- Receiver: Height: 3.75" (9,5 cm)
- Length: 1.1" (2,7 cm)
ELECTRICAL SPECIFICATIONS
- AC Supply: 24~26 VAC
- Relay Contacts Output: Normal open & normal
- close 3A@24 VAC
- UL Listed, FCC, CE
