Hydro-View - Touch Screen System
The Hydro-View provides a simple interface to view Hydronix sensor data in addition to sensor configuration, diagnostics, calibration and data collection. The Hydro-View can be used either as a stand alone unit for recording sensor data or integrated into a control system. The Hydro-View connects a network of up to 16 Hydronix sensors with multiple systems simultaneously. Connections can be made using TCP/IP, existing RS485 networks implementing the Hydro-Link Protocol or through the Fieldbus option.

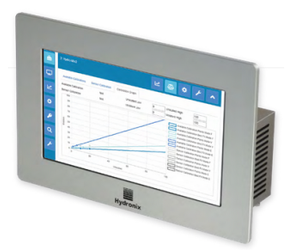

The Hydro-View has a 10.1” touch screen for local configuration and viewing and features a built in web server with a web API for machine data requests. Its web browser interface gives it the flexibility to be used with tablets and PCs when a remote connection is required. For systems that have already implemented the Hydro-Link protocol, the Hydro-View adds the full functionality of Hydro-Com software via the web browser interface.
- 10.1” touchscreen
- Easy to install in new or existing systems
- Simple to integrate into Hydronix networks
- Live display to view measurements of up to 6 sensors
- Communicates with up to 16 sensors
- Ethernet Port with web browser interface / Web API
- Calibrate Hydronix sensors
- Log sensor data via USB

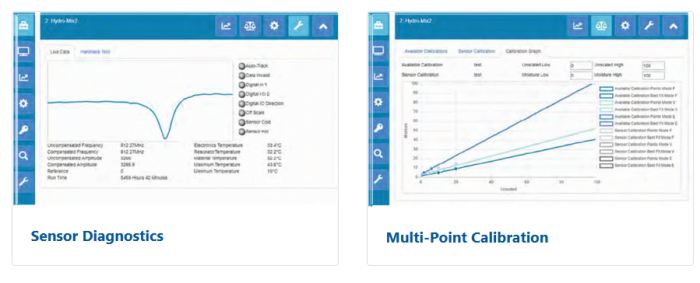

- Live sensor diagnostics
- Sensor configuration
- Optional - Fieldbus connection
- Optional - Calibration selection using digital inputs
Body: Stainless Steel.
Touch Screen: 10.1” Widescreen LCD colour display.
Linux.

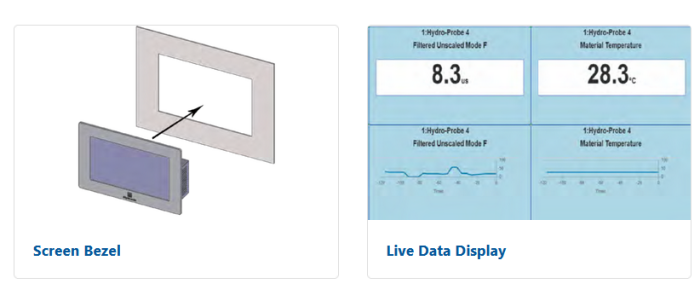

The unit can be installed in an operator panel or in the Hydronix steel enclosure.
24V DC 1.25A (40W) for Hydro-View only.
Power for sensors must be calculated separately.
Web browsers with a screen resolution of 1024 x 600 and above.
IP65 Front panel (when correctly installed in an operator panel or cabinet).
0 – 50 degrees C.
RS485 communication from Control System.

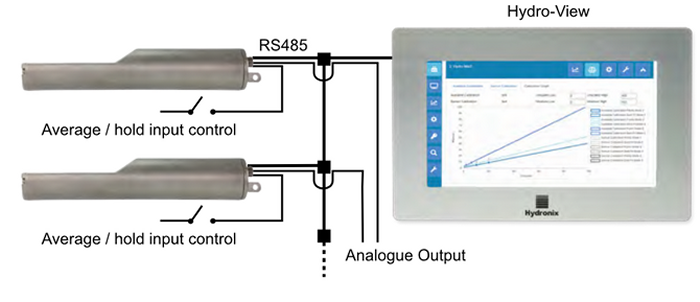

RS485 communication to sensor network of up to 16 sensors.
Ethernet port.
Web browser over TCP/IP network.
Optional Fieldbus port.
Optional 16 Digital Input card for digital calibration selection (16 sensors, 256 calibrations for each).
USB ports for USB memory sticks for data logging, backup / restore and system upgrade.
Hydro-View parts- HV05 Hydro-View (includes Mounting Brackets)
- HV05E Hydro-View with Expansion Module
- 0117 Power Supply - 24VDC, 120W to power 16 sensors
- On Request Fieldbus Module
- 0175 USB Panel Mount Socket
- HV05EW 4 Year extended warranty option

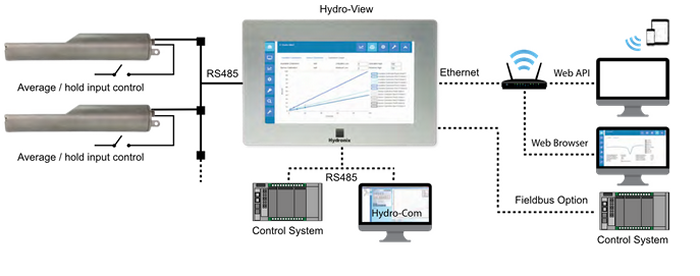

Typical Installation and Connectivity
The Hydro-View is easy to install in existing systems and expands their capability through the additional RS485 port which accepts all current and legacy Hydro-Link protocol commands.
The calibration management functionality provides support for integrators and users who only require a moisture value from a sensor in their system without needing to write complicated calibration functions.
The web browser interface can be used to store multiple sensor calibrations for different materials, sensor configuration, diagnostics and logging.
The Hydro-View display system for Hydronix moisture sensors is easy to configure to operate in many languages. Our current list of available languages is listed below and we frequently add new ones so please visit this page again to check for updates.
Software Languages include:
- English
- Deutsch (German)
- Español (Spanish)
- Français (French)
- Italiano (Italian)
- Nederlands (Dutch)
- ?????? (Russian)
- ?? (Chinese)
- ??? (Japanese)
- ??? (Korean)
Hydronix is continually updating it`s product range to include new languages. If your native language is not listed please contact us and we will be able to advise you when it will be available.
