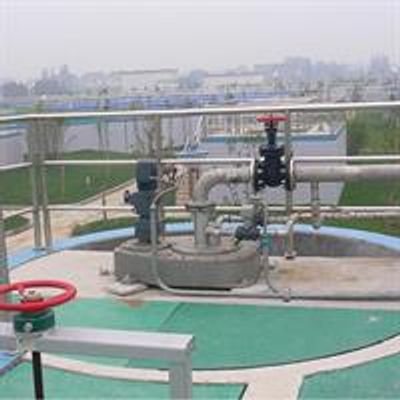

Maoyuan - Model XLC -Hydrocyclone Separator
The equipment is commonly used in urban sewage treatment plant at the beginning of the pond, grille, after separation of the sewage larger inorganic particles (generally greater than 0. 5 mm in diameter), most of them adopt air sand, if when the sand sand pump is adopted generally higher requirements for wear and tear. Steel tank is suitable for medium and small flow. It is applied to a single swirl sand settling pond, and its combined structure function is similar to that of the dorr sand settling pond when air sand extraction is adopted, but under the same treatment, the combined structure occupies a small area and has high efficiency.
Raw water from the tangent direction, the initial formation of vortex, formed by the impeller in a certain velocity and flow pattern, make adhesion organic sand, wash each other gradually, and rely on gravity and vortex resistance sink into sand hopper center, stripping of organic matter with axial flow overflow go up. The sand accumulated in the sand bucket is lifted by air lift or sand pump, and then completely separated into the sand water separator. The separated sand is discharged to the dustbin (cylinder) for external transportation, and the sewage is returned to the grid well.
- Small area and compact structure. Good hygiene
- The sand precipitation effect is less affected by water amount, and the sand water separation effect is good
- The separated sand has low moisture content and is easy to transport
- PLC automatically controls the sand washing and sand removal cycle, and the operation is simple and reliable.
