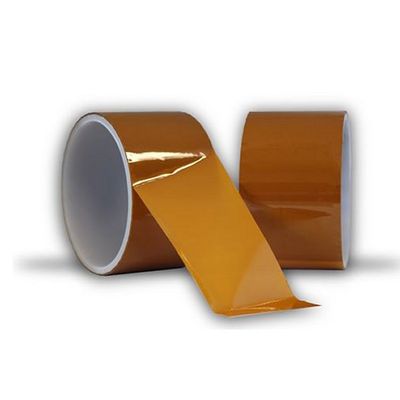

Nitto - Model DX-2106H -Hydrogen Detection Tape
FromNitto, Inc.
Utilize Nitto`s Hydrogen Detection Tape with color-changing technology for system start-up, post change-out assurance, or continuous leak detection.
Most popular related searches
Nitto`s Hydrogen Detection Tape allows for the visual detection of leak locations by changing color from amber to black when the adhesive comes in contact with hydrogen gas.
- Utilize for system start-up, post change-out assurance, or continuous leak detection
- Detects as low as 1% hydrogen concentration
- Fast acting color-change technology
- Versatile for indoor or outdoor use
- Permanent color change
- Standard application temperature range -40° C to 100° C (Short-term up to 200° C)
- Easy to apply tape and lasts up to 6-months
- Color-change is influenced by flow rate, temperature, exposure time, and percent concentration of hydrogen gas.
- Tape will not return to its original color once adhesive is exposed to hydrogen gas.
- For applications outside the standard temperature range, customer is responsible to ensure product meets intended application requirements before approved use. For higher temperature applications, you will need to monitor and change out more frequently.
- It is recommended that tape be replaced after a leak has indicated (and leak location has been properly fixed) or after 6-months to minimize potential adhesive residue build up.
- BACKING MATERIAL : 1-Mil Polyimide Film
- ADHESIVE : Silicone with H2 Detection Properties
- COLOR : Amber
- COLOR-CHANGE : Amber to Black 150 Sec 6mL/min 100% H2
