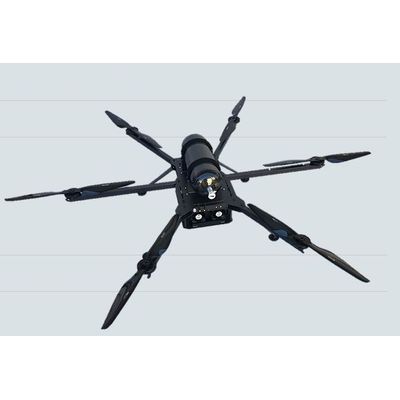

HES - Hydrogen Electric Multi-Rotor Drone for Professional Use

SHARE

up to 3.5 hour flight durations.  up to 3.5 hour flight durations .

Most popular related searches
radio remote control
pneumatic booster
dam inspection
infrastructure inspection
booster pump
safety compliance
infrastructure inspection drone
security surveillance
chemical compliance
inspection drone
DIMENSIONS & WEIGHT

Dimensions

  • 1,450 mm motor diameter x 500 mm height
  • MTOW
  • 15 kg
POWER
  • Fuel Cell Nominal Power
  • 1,500 W
  • LiPo Peak Power
  • 4,000 W for less than 10 seconds
  • EN STORAGE & REFUELING

Fueling Carriage

  • Compressed gas - Hydrogen cylinders

Capacity

  • Three options : 5L - 9L - 12L

Pressure

  • 350 bar

Refilling Duration

  • Approximately 30 min, depending on cylinder size and hydrogen supply pressure

Refilling Equipement

  • Electric or pneumatic booster pump
  • PAYLOAD

Payload Volume

  • (L) 260 mm x (W) 330 mm x (H) 200 mm
  • Max. Payload Weight
  • 2.5 kg

Voltage

  • 5 V - 32 V
  • Payload Max. Power Supply
  • 150 W optional
  • Payloads
  • Open payload bay for a variety of cameras and sensors
PERFORMANCE & OPERATIONS

Flight Time

  • Up to 3.5 hours, depending on payload and hydrogen cylinder

Maximum Speed

  • 56 kph (35 mph), wind and payload dependent

Maximum Ascent Speed

  • 3.2 m/s (10.4 ft/s)

Maximum Descent Speed

  • 2.2 m/s (7.1 ft/s)

Yaw-Pitch-Roll

  • Pitch: 250°°/s - Yaw: 100°°/s

Maximum Tilt Angle

  • 32°

Wind Survivability

  • 32 km/h

Deployment Time

  • Approximately 10 minutes with 2 people

Field Serviceability

  • Can be implemented based on customer`s requirement

Operating Temperature

  • -5° to 45° (fuel cell limited)

Storage Temperature

  • 0° to 45° (fuel cell limited)
CONTROL
  • Control Hardware
  • Joystick radio
  • Remote Control
  • 3 km (line of sight)
  • Flight Controller
  • Pixhawk 2
  • Navigation Assistance
  • Telemetry, flight planning  software, optional FPV camera system
  • GPS Accuracy
  • Vertical: 0.5 m (1.64 feet) - Horizontal: 2.5 m (8.2 feet)
  • 10km+ Range Extension
  • Available on request
  • SAFETY & COMPLIANCE
  • Safety
  • Avoid open flames, high heat, smoke, and chemical gases
  • Compliance
  • Depending on local regulations
  • Parachute
  • Option available. Approximately 550g loss in payload capacity
INFRASTRUCTURE INSPECTION

HYCOPTER drones can cover 6 times more surface area than most of today’s battery drones, making large-scale dam inspections faster, cheaper and easier to complete. Images collected by HYCOPTER link up to H3 Zoom.AI, an AI-assisted visual analytics platform on cloud designed to speed up the validation and reporting process of specialist inspection reports.

SECURITY & SURVEILLANCE

Designed for quiet Long Endurance (LE) multi-rotor flight endurance, reliability and high performance, HYCOPTER is the ultimate drone solution for persistent reconnaissance and surveillance applications. With multi-sensors payloads capabilities, HYCOPTER brings real time support solutions, optimising tactical field operations.

ENERGY BOOST

  • Optimize take-off weight with optional hydrogen cylinder options for up to 3.5 hours of flight time.

OPEN PAYLOAD BAY

  • 12V payload power (other voltages available)

  • Up to 2.5 kg

  • Payload bay (L) 260 mm x (W) 330 mm x (H) 200 mm

REFUELING

  • up to 400 bar output pressure

  • 120-240VAC, 50/60 Hz

  • < 63 dB noise during operations

 TRAINING SERVICES

  • Hydrogen gas: handling, refilling, and safety

  • Fuel cell  system operations

  • Fuel cell drone operations (ground & air) and payload integration
