Gasera - Model ONE HF -Hydrogen Fluoride Gas Monitor
Hydrogen fluoride, chemical formula HF, is a colorless, highly irritating already at very low ppm levels, corrosive gas and can exist as a fuming liquid. Reaction with water is rapid, producing heat and hydrofluoric acid. Hydrogen fluoride (HF) is used in manufacturing of refrigerants, herbicides, pharmaceuticals, high-octane gasoline, aluminum, plastics, electrical components, and fluorescent light bulbs, among others. Hydrogen fluoride (HF) is very soluble in water and is readily absorbed in the upper respiratory tract. Hydrogen fluoride (HF) is a severe irritant to the eyes, skin, and nasal passages and it may penetrate easily and quickly through the skin or lungs and into the tissues in the body causing serious damage to cells and organs. Gasera one HF hydrogen fluoride gas monitor is an effective tool to protect people and the environment.
Hydrogen fluoride Gas Monitor
- Parts per billion level detection limit of hydrogen fluoride (HF)
- Easy to use
- Drift-free operation

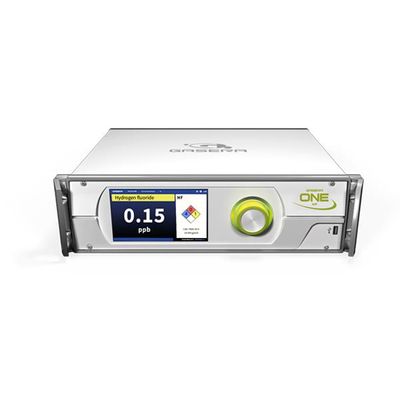

GASERA ONE HF, A HYDROGEN FLUORIDE GAS MONITOR TO MEASURE LOW LEVELS OF HYDROGEN FLUORIDE IN AMBIENT AIR
- Standalone system with built-in gas exchange system
- Cost-efficient no consumables or wet chemistry
- Portability that enables field use
GASERA ONE HF hydrogen fluoride gas monitor is based on combining ultra sensitive cantilever enhanced photoacoustic detection technology with a tunable diode laser (TDLAS) source operating at a fundamental spectral absorption line of hydrogen fluoride (HF).
This combination provides enough sensitivity (parts per billion level!) to reliably measure ambient background levels of hydrogen fluoride (HF). It also gives an exceptionally high level of stability with a recommended re-calibration period of 12 months, and thus it offers a low total cost of ownership.
- 0.5 ppb (parts per billion) level detection limit of hydrogen fluoride (HF)
- Easy to use
- Drift-free operation
UNMATCHED PERFORMANCE

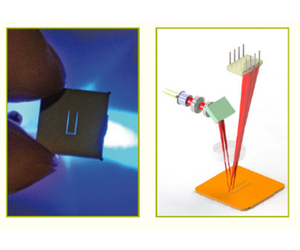

Photoacoustic infrared spectroscopy engine with a patented ultra-sensitive cantilever sensor enables sub-ppb detection limits.
RELIABLE MEASUREMENT OF AMBIENT BACKGROUND LEVELS

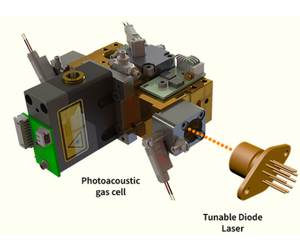

Based on combination of Tunable Diode Laser source with patented photoacoustic detection.
HYDROGEN FLUORIDE LEVELS WITH 0,5 PPB DETECTION LIMIT
HF produced by industrial activity and natural phenomena is a severe irritant to the eyes, skin, and nasal passages above 3 ppm levels and it may penetrate easily and quickly through the skin or lungs and into the tissues in the body causing serious damage to cells and organs.

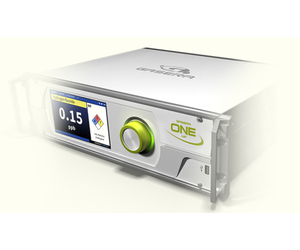

WORLD`S MOST INTUITIVE USER EXPERIENCE
All functions accessible with one intuitive dial.
- Hydrogen fluoride (HF)
- selective monitoring of hydrogen fluoride (HF)
- 0,5 ppb detection limit
- response time user configurable from 15 seconds to few minutes
- high dynamic range and stable operation
- no consumables
- low sample volume (few ml)
- built-in gas exchange system
- recommended re-calibration interval 12 months
- user configurable monitoring tasks
- intuitive user interface
- built-in display presents results both numerically and graphically
- fence-line monitoring
- ambient hydrogen fluoride monitoring
- aluminium smelters and refineries
- petrochemical industry
- indoor air quality and occupational safety
