VET - Hydrogen Flux Monitor

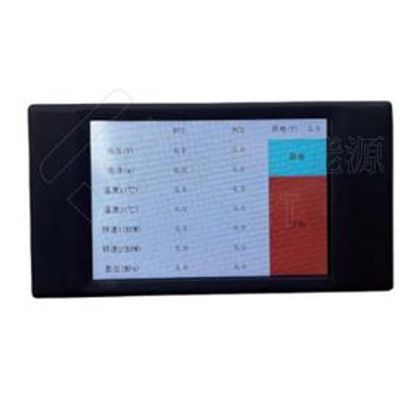

This device (Hydrogen Flux Monitor) is mainly used for real-time display of operational data of VET Energy`s independently produced air-cooled fuel cell stacks.It comes with three CAN interfaces and can achieve simultaneous monitoring of two stacks and one pressure sensor.The display interface can simultaneously display fuel cell temperature, wind speed,voltage, current, and gas cylinder pressure (only monitoring high-pressure gas cylinders).Only palm sized,easy to carry,clear screen display,left and right switching to view different stack operation data,suitable for carrying and using outdoors.

Interface

Three cAN interfaces, connected to the cAN test bus (regardless of primaryorsecondary),power switch

• Weight: approximately 186g
• Equipmentsize:112.85*61.16*30.23mm(L*W*H)
• Screen size:73.44*48.54mm

• Real-time monitoring of hydrogen levels
• High precision sensors for accurate measurements
• User-friendly interface for easy operation
• Ideal for industrial applications requiring hydrogen monitoring
• Ensures safety and efficiency in hydrogen-handling environments

• Step 1:Connect one end of the CAN bus to the CAN interface ofthe control system FccU on the fuel cell
• stack, and the other end to the cAN interface of the hydrogen monitor;
• Step 2:Long press the power button in the upper left corner of the device and turn it on for3 seconds;
• Step 3:View real-time data of the fuel cell as needed;
• Step 4:During operation,data can be captured using a mobile phone to provide feedback;
• Step 5:After use,turn off the fuel cell first,then turn off the hydrogen monitor switch, and finally disconnect the CAN bus.
