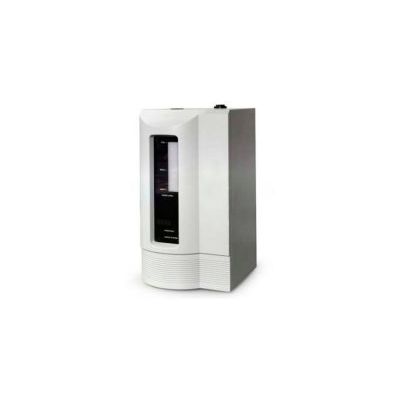

JCT - Model H2PD -Hydrogen Generator

Benefits

• Simple low cost annual maintenance
• Ultra high purity (99,99999%)
• Eliminates dangerous hydrogen cylinders from the laboratory
• Keeps internal hydrogen storage to an absolute minimum
• Only deionised water, no other chemicals necessary
• Reliable safe operation without impurities and therefore without loss of quality and system wear as for systems with caustic solutions
• Low time effort for operation because only deionised water has to be refilled and there is no need for storage of caustic compounds/solutions and cell regeneration

Features

• Continuous evenly production of ultra pure hydrogen (99,99999 %) at up to 5,1 bara
• Up to 300 ml/min pure fuel gas for up to 7 FIDs or carrier gas for several GCs resp. GC/MS
• Lowest possible background noise for hydrocarbon trace measurements and air pollution monitoring
• No basic line drift as for automatic drying technologies
• Oxygen < 0,01 ppm
• Humidity < 1 ppm
• Sophisticated control system continuously monitors the vital operating parameters
• CE, CSA and UL approval
• Integrated pressure transducer
• Microprocessor controlled
• Smart-display technology with LCD display
• System status visible at a glance
• Auto water fill for endless operation
• Cascading of up to 32 units possible
