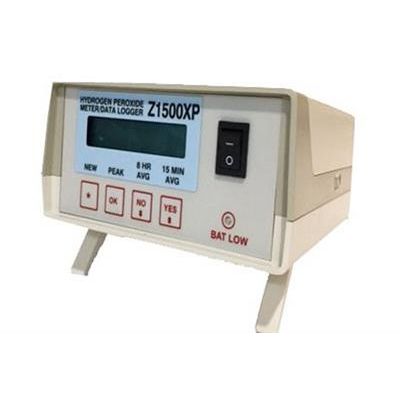

ESC - Model Z-1500XP -Hydrogen Peroxide Monitor
Environmental Sensors’ Hydrogen Peroxide Meter is a portable instrument that measures Hydrogen Peroxide concentration in a range of 0-20 ppm and a resolution of 0.1 ppm. The instrument makes it possible to monitor Hydrogen Peroxide vapor in air. The instrument has a LCD display giving concentrations in ppm, a low battery indicator, and an audible alarm that can be set at any level from 0-20 ppm. With the touch of a button, the meter displays STEL (average of every 15 min.), TWA (average of every hour) and Peak.
- Real Time Continuous Monitoring
- Active Sampling
- TWS, STEL, and Peak
- Adjustable Alarm
- Rechargeable Battery
The Z-1500XP Hydrogen Peroxide meter stores all of the exposure points for up to 14,400 at 10 sec. interval in 5 logs (a log is created in the instrument’s internal memory each time it is used). A log contains: date, time, number of exposure points. All of the log files can be easily uploaded to PC using components available within the Microsoft Windows Operating System or the terminal software included with the instrument.
The sensing element of the instrument is an electrochemical cell. The cell is a four- electrode type, which contains a working and an active auxiliary electrode. The signal from the auxiliary electrode is used for temperature compensation and to improve the selectivity of the entire sensor. The sensor response is linear with the concentration of ozone in air.
- Measuring Range: 0-20 ppm
- Maximum Overload: 20 ppm
- Resolution: 0.1 ppm
- Sensor Life: > 2 years
- Response Time: < 150 sec.
- Operating Temperature: -20 °C to +50 °C
- Relative Humidity: 15 - 90 % non-condensing
- Alarm: Audible, 80db
- Dimensions: H x D x W: 7.5" x 5.75" x 2.75"
- Weight: 900 grams
- Battery: Internal Rechargeable Battery or AC Adapter
- Warranty: 1 Year
