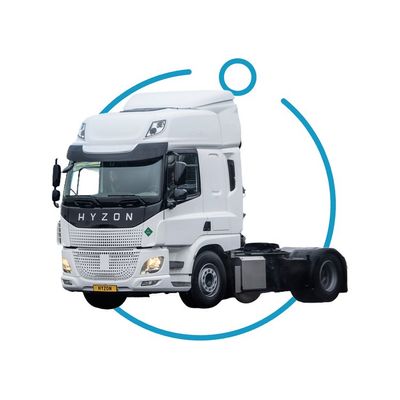

Hyzon - Model Hymax Series -Hydrogen-Powered Fuel Cell Electric Vehicle
400-680 kilometer range; Multiple configurations available; Sold in Europe, Australia, Asia.
Available in multiple configurations
/ 24 tonne configuration
/ 46 tonne configuration
/ 70 tonne configuration
Hydrogen Fuel Cell Electric Powertrain Specifications
/ Typical driving range: 400km
/ Electric motor power: 160 kW continuous (250 kW peak)
/ High voltage battery energy: 70 kWh
/ Fuel cell power: 80 kW continuous
/ On-board hydrogen: 30 kg
/ Working pressure cylinders: 350 bars
/ Fuel economy: 13.3 km/kg
Chassis Specifications
/ Chassis: LF 290 FAP
/ Chassis length: 11,280 mm
/ Chassis width: 2,470 mm
/ Chassis height: 2,880 mm
/ Wheelbase: 6,900 mm
Hydrogen Fuel Cell Electric Powertrain Specifications
/ Typical driving range: 680km
/ Electric motor power: 450 kW continuous
/ High voltage battery energy: 140 kWh
/ Fuel cell power: 240 kW continuous
/ On-board hydrogen: 70 kg
/ Working pressure cylinders: 350 bars
/ Fuel economy: 9.7 km/kg
Chassis Specifications
/ Chassis: DAF CF 530 FTT 6X4 (Sleeper Cab)
/ Chassis length: 6,820 mm
/ Chassis width: 2,460 mm
/ Chassis height: 2,990 mm
/ Wheelbase: 3,900 mm
Hydrogen Fuel Cell Electric Powertrain Specifications
/ Typical driving range: 600km
/ Electric motor power: 450 kW continuous
/ High voltage battery energy: 140 kWh
/ Fuel cell power: 240 kW continuous
/ On-board hydrogen: 95 kg
/ Working pressure cylinders: 700 bars
/ Fuel economy: 6.5 km/kg
Chassis Specifications
/ Chassis: DAF CF 530 FTT 6X4 (Sleeper Cab)
/ Chassis length: 7,330 mm
/ Chassis width: 2,450 mm
/ Chassis height: 2,970 mm
/ Wheelbase: 4,300 mm
ZERO EMISSIONS
Eliminate carbon emissions harmful to our environment, your community, and your drivers. Hyzon FCEVs emit only water vapor.
HEAVY PAYLOADS, LONG DISTANCES
Thanks to, energy-dense hydrogen. FCEVs have the power, range, payload, and refueling time typical of a diesel vehicle.
SAFER FOR ALL
Quick acceleration means safe merging and maneuvering, while a smooth ride lets drivers focus on the road. All the while, near-silent driving creates less noise pollution.
