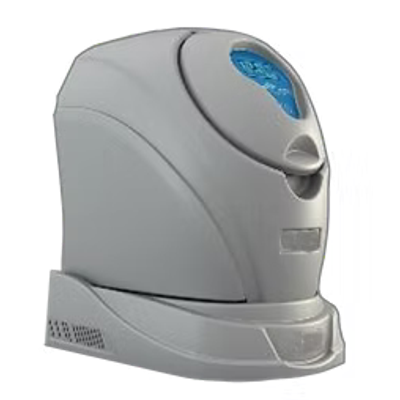

Apex Gasgen - Model WM-H2/-400 -Hydrogen / Zero Air Generators
High purity Hydrogen and Zero Air is delivered as required. The small size of the generator allows it to be easily accommodated on top of a workbench and provides flexibility to match your system requirements.
Most popular related searches
zero air
high purity hydrogen zero air
zero air generator
water distillation
pressure regulator
liquid separation
hydrogen air generator
electrolytic cell
water pump
gas separation

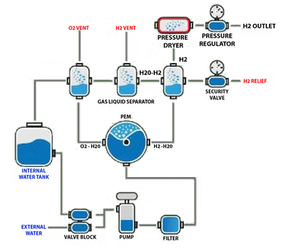

Deionised or distilled water is pumped into a Polymer Electrolyte Membrane (PEM) cell. Within the PEM cell Electrolytic Disassociation splits the water into Hydrogen and Oxygen. The Oxygen is vented safely from the system whilst the Hydrogen proceeds through the system. After passing through a gas/liquid separator the hydrogen gas enters a double column regenerative dryer to remove the last traces of water from the gas. The hydrogen then passes to the application via a pressure regulator.
