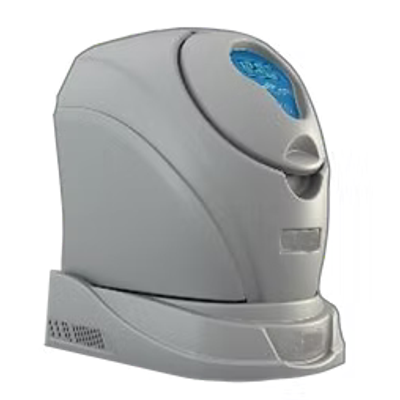

Apex Gasgen - Model WM-H2/-500 -Hydrogen / Zero Air Generators

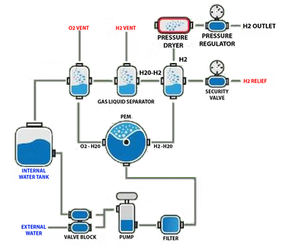

Deionised or distilled water is pumped into a Polymer Electrolyte Membrane (PEM) cell. Within the PEM cell Electrolytic Disassociation splits the water into Hydrogen and Oxygen. The Oxygen is vented safely from the system whilst the Hydrogen proceeds through the system. After passing through a gas/liquid separator the hydrogen gas enters a double column regenerative dryer to remove the last traces of water from the gas. The hydrogen then passes to the application via a pressure regulator.
