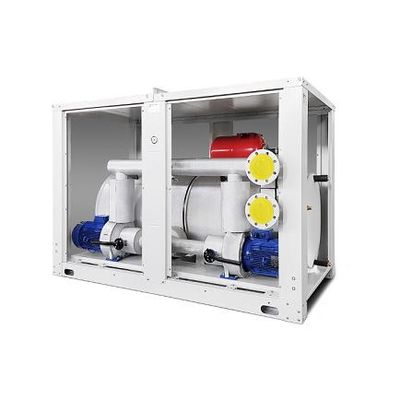

Hitema - Model HYD Series -Hydromodule
HYD SERIES - HITEMA Hydro-Module series, consists of water storage tank in carbon steel, open frame if only tank / closed frame in galvanized and painted steel if with single/double pump, expansion vessel, automatic filling valve, automatic air vent. 3bar maximum operating pressure. These Units have been designed ONLY FOR INBUILT PUMP/S VERSION: 400V/3ph/50Hz electrical feed, IP54 protection rating, chillers suitable for outdoor installation.
WP =Single pump P3 with nominal pressure head 3 barg
DP =Double pump P3 (run and standby, with automatic changeover every 24h or on fault) with nominal pressure head 3 barg
PH =Single pump P5 with nominal pressure head 5 barg
DPH =Double pump P5 (run and standby, with automatic changeover every 24h or on fault) with nominal pressure head 5 barg
- High reliability on configuration with single or double pumps, expansion vessel, carbon or stainless steel tank
- Strenght carbon steel frame and compact design
- Completely custimized with high number af available options
- Available to be connected with all Chillers of Hitema Series
