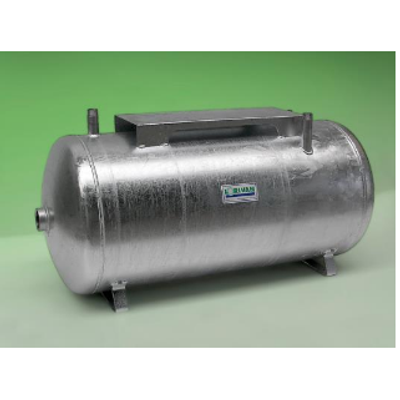

Lorivan - Model Galva -Hydrophore Tank

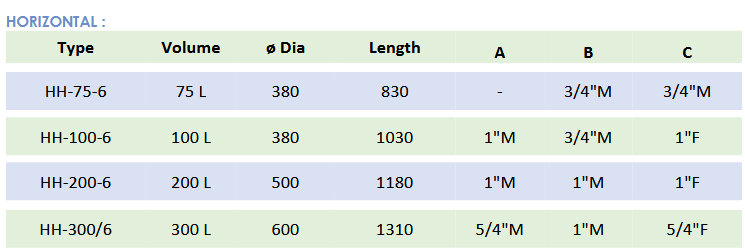

Execution : Steel tank for water and air. Horizontal or vertical pressure vessel. Design Pressure 6 bar-Test Pressure 8.6 bar. Design Pressure up to 15 bars upon request. Temperature : -10°C / +50°C. Conformity with Pressure Equipment Directive 2014-68-EU (PED). Hot dip galvanized according EN ISO 1461. Horizontal execution : with (universal) pump support or made to mesure.
