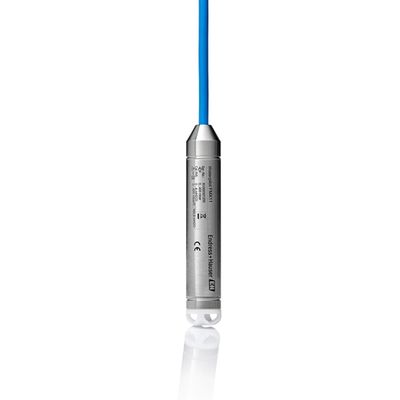

Endress + Hauser - Model FMX11 -Hydrostatic Level measurement Waterpilot
Simple and reliable level probe for freshwater applications: The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.
Accuracy
pn ≥ 400mbar: 0.35 %
pn < 400mbar: 0.50 %
Process temperature
-10°C...+70°C
(+14°F...+158°F)
Pressure measuring range
200 mbar...2 bar
(3 psi...29 psi)
Process pressure absolute / max. overpressure limit
10 bar (145 psi)
Main wetted parts
316L
Max. measurement distance
200 m H2O
(656 ft H2O)
Material process membrane
Metal
Measuring cell
200 mbar...2 bar
(3 psi...29 psi)
- Simple and reliable transmitter for various drinking water applications
- Easy installation, commissioning and operation
- Orderable with flexible measuring ranges and cable lengths tailored to fit your application
- Robust construction for durable long-term services
- Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations
- Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.
- Simple specification and ordering
- Temperature: –10 to +70°C (14 to 158°F)
- Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H2O)
- Cable length: 6 to 30m
- Accuracy: up to ±0.35%
- Drinking water approvals: ACS, KTW, NSF61, DVGW
- Certifications: cULus
Continuous / Liquids
Measuring principle
Hydrostatic
Characteristic / Application
Compact probe with metallic cell for hydrostatic level measurement
in fresh water, ground water and potable water storage.
Supply / Communication
8...28 VDC
Accuracy
pn ≥ 400mbar: 0.35 %
pn < 400mbar: 0.50 %
Long term stability
0.1% of URL/year
Ambient temperature
-10°C...+70°C
(+14°F...+158°F)
Process temperature
-10°C...+70°C
(+14°F...+158°F)
Process pressure absolute / max. overpressure limit
10 bar (145 psi)
Pressure measuring range
200 mbar...2 bar
(3 psi...29 psi)
Main wetted parts
316L
Process connection
Suspension clamp
Cable mounting screws
Max. measurement distance
200 m H2O
(656 ft H2O)
Communication
4...20 mA
Drinking water approvals
NSF, KTW, ACS
Pressure
Measuring principle
Hydrostatic pressure
Characteristic
Compact probe with metallic cell for hydrostatic level measurement
in fresh water, ground water and potable water storage.
Supply voltage
8...28 VDC
Reference Accuracy
pn ≥ 400mbar: 0.35 %
pn < 400mbar: 0.50 %
Long term stability
0.1 % of URL/year
Process temperature
-10°C...+70°C
(+14°F...+158°F)
Ambient temperature
-10°C...+70°C
(+14°F...+158°F)
Measuring cell
200 mbar...2 bar
(3 psi...29 psi)
Process connection
Suspension clamp
Cable mounting screws
Material process membrane
Metal
Communication
4...20 mA
Drinking water approvals
NSF, KTW, ACS
