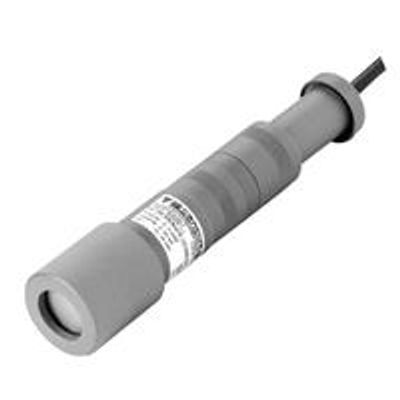

iCenta - Model LMK 858 -Hydrostatic Level Transmitter
The Hydrostatic Level Sensor | Transmitter LMK 858 has been developed for continuous level measurement in aggressive media. Usage in more viscous media, for example sludge, is possible because of the semi-flush diaphragm. The basic element is a mechanically robust and highly overloaded capacitive ceramic sensor; the transmitters are among others suited for the measurement of low filling heights with good long term stability. In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.
Features of the LMK 858 include:
- Diameter 45 mm
- Transmitter head and cable assembly plugged
- Nominal pressure ranges: 0 to 40 cmWC up to 0 to 100 mWC (0 to 40 mbar up to 0 to 10 bar)
- Output 4 – 20mA or Volts
- Sensor technology: thick film/ceramic, capacitive
- Accuracy: <±0.175%
- Good long term stability
- Cable protection with PVC pipe possible
- Customer specific versions available
General Applications:
- Level monitoring in open tanks with low filling heights
- Depth or level measurement in wells and open waters
- Ground water level measurement
- Sewage treatment, water supply
- Chemical and pharmaceutical industries
The LMK 858 is a plastic Hydrostatic Submersible Level Transmitter with Ceramic Sensor.A hydrostatic submersible level transmitter that has been developed for continuous level measurement in most aggressive media.
Specification Detail of the LMK 858:
- Diameter : 45mm
- Material Body : PVC
- Flow Range : NA
- Accuracy : ≤± 0.175%
- Operating Temp Range : 0 to 50°C
- Pressure Range : 0.06 to 10 bar g
- Outputs & Comms : 2/3 wire – 4 …20 mA/ 0… 10 V /3w
- Insertion / Inline : Insertion
- Fluid Type : Liquid
- Applicable Liquids : Water, waste water, aggressive liquids
- Power : 12 …36 VDC
- Approvals : -
- Connection Type : NA
