Very efficient pumps intended for use in the foodstuffs, chemical and pharmaceutical industries. Capacity from 0 to 500 m3 / h met suction/discharge head up to 100 m. Manufactured from CF-3M / AISI 316L stainless steel. Maximum modularity of components and easy inspection, cleaning and maintenance. Recommended for particularly abrasive environments. These pumps can be delivered in special materials upon request: Hastelloy, Sanicro 28, Duplex.
CSF Inox S.p.A.

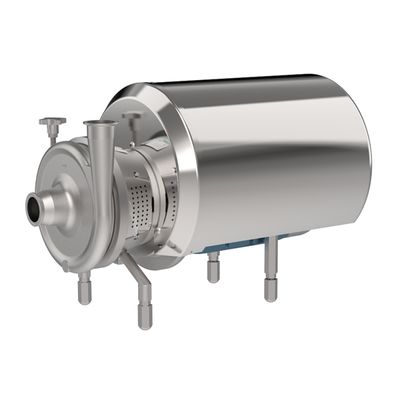

CSF - Model CS / CSX Series -Hygienic Centrifugal Pumps
FromCSF Inox S.p.A.
The CS and CSX series are hygienic centrifugal pumps designed for challenging applications in the food, chemical, and pharmaceutical sectors. The CS series is crafted with AISI 316L stainless steel, featuring an open impeller optimized for gentle handling of products, and can optionally include materials like Super Duplex and Hastelloy for abrasive conditions. These pumps allow easy coupling with standard IEC motors due to their double-mounted axle construction and are available with a stainless steel motor cap for protection. The optional inducer reduces the NPSH value. The CSX series also uses CF-3M/AISI 316L stainless steel, with capacity up to 500 m3/h and up to 100 m head, offering modular components for simplified maintenance. They are suitable for abrasive environments, with material options like Hastelloy, Sanicro 28, and Duplex available on request, ensuring high efficiency and optimal performance in demanding operations.Most popular related searches
This type of hygienic centrifugal pump finds frequent application in the food and pharmaceutical industries. The special design of the “CS” pump series means that these pumps can ensure a high level of efficiency and top performance. The components that come into contact with the product are manufactured from AISI 316L stainless steel. Upon special request, these components can also be delivered equipped with a special alloy such as Super Duplex and Hastelloy for use in a particularly abrasive operational environment. The design of the open impeller with 6 blades has been optimised to guarantee delicate treatment of the pumped liquids. The “CS” series pumps can be delivered bareshaft due to their special construction with double-mounted axle. This allows the bareshaft pump to be quickly and easily coupled with standard IEC electric motors. The pump is available with a protective cap made of stainless steel for the motor, and with adjustable feet. An inducer can also be optionally installed on the pump intake in order to decrease the required NPSH value.
- Food
- Drink
- Pharmaceutical, cosmetic, chemical
- Manufacturing
- Environment
