Meacon - Model MIK-P350K - Hygienic ...

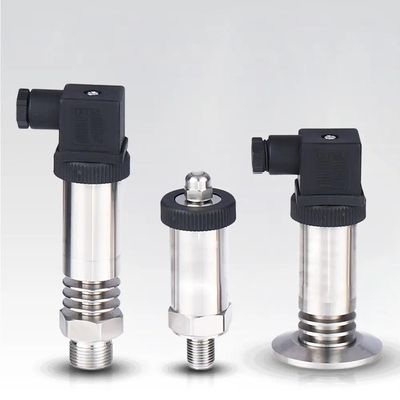

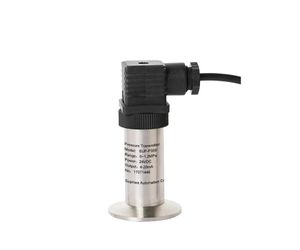

Meacon - Model MIK-P350K -Hygienic pressure transmitter

MIK-P350K is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. Features Range:-0.1~ 0 ~ 40MPaResolution:0.5% F.SOutput signal: 4~20mAInstallation: ClampPower supply:24VDC (12 ~ 36V)

Most popular related searches

hygienic pressure transmitter

pressure transmitter

piezoresistive pressure sensor

pressure sensor

pressure monitoring

gas monitoring

Product
Pressure transmitter
Model
SUP-P350K
Measure range
-0.1…0…3.5MPa
Indication resolution
0.5%
Ambient temperature
-10 ~ 85 ℃
Output signal
4-20mA analog output
Pressure type
Gauge pressure; Absolute pressure
Measure medium
Liquid; Gas; Oil etc
Pressure overload
150%FS
Power
10-32V (4…20mA);12-32V (0…10V);8-32V (RS485)

Meacon - Model MIK-P350K -Hygienic pressure transmitter

MIK-P350K Hygienic pressure transmitter
