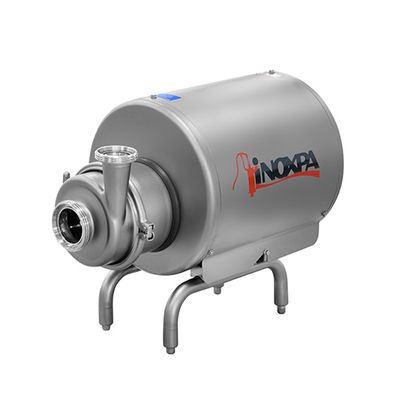

Hyginox SE Centrifugal Pumps

SHARE

Application: The sanitary and cost-effective design of the Hyginox SE centrifugal pump makes it particularly suitable as a primary process pump in the dairy, beverage, pharmaceutical and cosmetic industries.

Most popular related searches
centrifugal pumping
centrifugal pump
close coupled centrifugal pump
mechanical seal pump
centrifuge
EC regulations
ATEX certification
close coupled pump
process pump
gaskets

Hyginox SE is a range of close-coupled centrifugal pumps with sanitary design, compact and efficient. It is made of a cold-formed stainless steel casing, stainless steel open impeller (investment casting), mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression.

The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienically designed legs.

Triphasic induction motor with B34 flange (B35 for motor frame 132 and above), in compliance with the IEC standards, 2 poles = 3000/3600 rpm, efficiency class according to EC regulation, IP 55 protection and F-class insulation.

3 phases, 50 Hz, 230 V Δ / 400 V Υ, ≤ 4 kW
3 phases, 50 Hz, 400 V Δ / 690 V Υ, ≥ 5,5 kW

Materials:

Parts in contact with the product: Stainless steel AISI 316L (1.4404)
Other steel parts: Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product: EPDM (according to FDA and EC 1935/2004)
Single internal mechanical seal: EN 12756 l1k (according to FDA and EC 1935/2004):
Rotary part: Carbon (C)
Stationary part: Silicon carbide (SiC)
Gaskets: EPDM
Surface finish:
Internal: Ra<0,8 μm
External: Matt
Connections: DIN 11851

Operating limits:

Nominal pressure : 10 bar 145 PSI
Temperature range :     -10°C ila +120 °C 14 °F ila 248 °F
+140°C (SIP, maks- 30 dk.) 284 °F
Maximum flow: 145 m³/h 638 US GPM
Maximum differential head: 90 m 295 ft
Maximum speed: 3500 rpm

Options

  • SiC/SiC mechanical seal.
  • Gaskets: FPM and PTFE.
  • Jacketed pump housing.
  • Drain port.
  • Other connection types.
  • Motor with other voltages, frequencies,
  • protection classes and efficiencies.
  • Trolley and/or control panel.
  • ATEX certification.


Boyutlar: Hyginox SE
