Shine - Model SHC-3000S -Hypochlorous Acid Generator for Disinfection
The SHC-3000S Hypochlorous Acid Generator is a sophisticated system designed for generating hypochlorous acid disinfectant through water electrolysis. This product integrates a pretreatment and pure water system, ensuring high-quality output. The generator is capable of adjusting hypochlorous acid concentrations from 50 to 500 PPM, with a stable flow rate of 3000 liters per hour, making it suitable for diverse disinfection needs. Operating on a 380V/60Hz power supply, the system demands specified water pressure and quality, ensuring optimal function. Key technical features include mature technology for stable flow production, a PLC display instrument for monitoring parameters, and a fully automated operation facilitated by a microcomputer control system. The generator also supports connections to intelligent devices. Core components are sourced from renowned brands like Schneider, Siemens, and Grundfos, providing reliability and long-term performance. Ideal for hypochlorous acid manufacturers, food processing, and medical systems.SHC-3000S hypochlorous acid generator,used for hypochlorous acid disinfection and preparation,supporting pretreatment + pure water system equipment.The hypochlorous acid obtained can be used for disinfection in various scenarios
Concentration:50-500PPM(adjustable)
Flow rate:3000L/H
Voltage:380V/60Hz
SHC-3000S hypochlorous acid generator,supporting the pretreatment system + pure water system, the obtained hypochlorous acid disinfectant can be used for hypochlorous acid filling manufacturers,for the production of bottled hypochlorous acid sales.it also applies to food processing plants,medical systems
- 1 : Power supply
a.c 380V.frequency 50Hz,ground resistance<100Ω, Generator maximum power:20KW
- 2 : Water supply
Purified water, tap water pressure: static 0.1~0.3Mpa, generator water: 0.1~0.2Mpa, water temperature: 10~35℃
- 3 : Installation and operating environment requirements
Temperature 15~35℃, humidity < 80%, atmospheric pressure 70Kpa~106Kpa, good direct ventilation
- 4 : electrolytic agent
Name: Sodium chloride (Nacl), purity: chemically pure or more than 99.5%, solution ratio: saturated sodium chloride solution
- 5 : hypochlorous acid solution properties and indicators
Description: Colorless transparent liquid with slight chlorine taste
The main active component is hypochlorous acid (HOCL), and the effective chlorine content is 500 and 1000mg/L
Hypochlorous acid accounted for 95%~99% of the available chlorine
PH value: 5.0~6.5
REDOX potential (ORP)>800MV
- Source factory, customized production (appearance, concentration, flow can be customized)
- mature technology, (stable flow output: 3000L/H, concentration 50-500PPM can be adjusted according to the application scenario)
- Configure PLC display instrument for detecting key product parameters, such as conductivity, temperature, hardness, turbidity, PH, concentration, ORP, etc

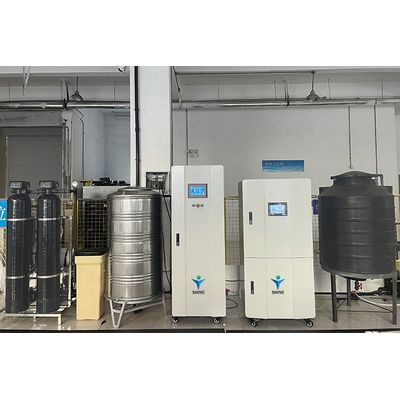

- Complete supporting facilities, set front-end pretreatment, and then through RO reverse osmosis, and finally through electrolysis to produce high-quality hypochlorous acid water.
- Fully automatic operation, microcomputer control system, automatic production, automatic start and stop and can be connected to other intelligent devices (sensors)
- Perfect after-sales service, long warranty period, core components are imported brands (Schneider, Siemens, Grundfos, etc.)
