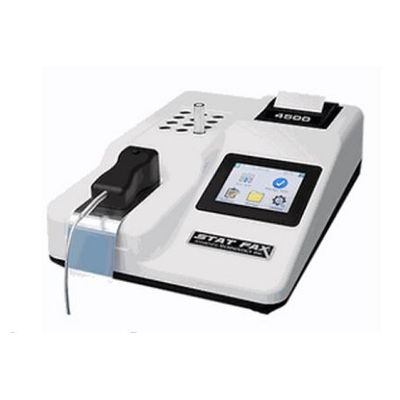

IBL Stat Fax - Model 4500 -Biochemistry Semi-Automated Analyzer

SHARE

Stat Fax 4500 is a compact, standalone chemistry analyzer with built-in 12 station incubation, on-board printer, and touchscreen.

Most popular related searches
biochemistry semi-automatic analyzer
automatic analyzer
automatic biochemistry analyzer
digital temperature controller
cell accommodation
biochemistry
flame retardant
biochemistry analyzer
cuvette
incubator
  • Performs endpoint and kinetic assays using standards or factors.
  • User programmable menu for routine chemistries such as cardiac, liver, kidney, and metabolic function tests.
  • Reads 12mm tubes, 1 cm square cuvettes, or with a flowcell.
  • Bichromatic photometer with 6 filters ranging from 340 nm to 700 nm.
  • Stores 500 test results.
  • Stores 1000 control results.
  • Speed Reads, calculates and prints results, 3 seconds per tube.
  • Linear Measurement Range 0.0 to 3.0 Absorbance units (A).
  • Photometric Accuracy +/- (1% +/- 0.010) 0.0 through 1.5 ABS +/- (2% +/- 0.010) 1.5 through 3.0 ABS.
  • Stability Drift of no more than 0.005A in 8 hours/bichromatic.
  • Light Source Xenon-Halogen with lamp saver feature.
  • Standard Wavelengths 340, 405, 505, 545, 580, and 630nm (alternate filters available from 340 to 700nm, a maximum of 8 filters installed must be custom manufactured).
  • Filter Type IAD hardcoat interference, 10nm half bandpass.
  • Tube Size 12 mm round tube is standard Read cell accommodates square cuvettes.
  • Minimum sample volume 1 ml for 12mm round tube 250μL for flowcell.
  • Display Interactive capacitive touch-screen 3.5” LCD, color graphic display.
  • Printer Thermal dot matrix, with graphic capability.
  • Power Requirements 110-240 VAC ~ 50/60Hz.
  • Calculation Modes Single point calibration by standard or factor, multipoint calibration with point-to-point curve fit, rate by standard or factor (batch or singly).
  • Test Menu Store up to 140 programmed tests Stores all parameters including wavelengths, calculations, unit codes, linear and normal ranges, rate timing, standard values, test names, and previous standard curve.
  • Special software features Levey-Jennings Q.C. Real-time kinetics.
  • Temperature control Read cell and incubation block, 37°C or off.
  • Enclosure Painted flame-retardant ABS plastic cover and base.
  • Dimensions Approx. 9x13.5x5in. (24x34x13cm) weighs 10 lbs.(4.5kg).
  • Certifications NRTL listed, CE mark.
