IBT - Element Electrode System

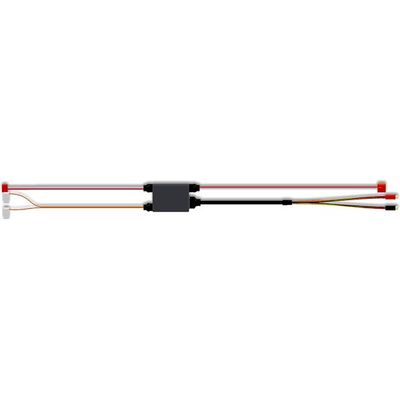

Updated Cables
Enjoy the same snap-in design, now with flat ribbon cables for even smaller form factor and increased durability.

Low profile suction seal
The low-profile shape allows prosthetists to build form-fitting frames. An innovative snap-in design allows for the IBT electrodes to be pushed into the socket and still form a suction seal to secure the socket tightly onto the limb.

Wireless Gain Adjustment
The Element system has built-in Bluetooth® for wireless gain adjustment through the Element software. No more unsightly holes for manual gain adjustment – with Element, you can create a truly sealed socket.

Advanced Signal Processing
Using digital signal processing, Element rejects noise to reduce interference. The companion software enables users to fine-tune the electrode signal to their maximum potential, which includes not only gain, but smoothness and sensitivity.

Easy Installation
Element saves you time in fabrication because it plugs right in, eliminating the need to order separate cables and make difficult cable connections. Simple electrode dummies help form a sealed pocket for the IBT electrode within a socket.  With the pocket formed, IBT electrodes can be snapped right into the socket.

OUTPUTS
EMG (2x) 3-Pin Kidney-style connector
7.4V 2-Pin Kidney-style connector
Standard output shown.  Your Element may be configured with different output connectors depending on your terminal device.

INPUTS
IBT Electrode Digital In (2x)
7.4V (FlexCell)
2-Pin Kidney-style connector

SAFETY
RoHS Compliant
CE Marked
US FDA 510(k) Cleared

WHAT`S IN THE BOX
Element, 2 IBT Electrodes, Fabrication dummies for Element and Electrodes, USB Drive with software, USB Bluetooth Adapter, Instruction Manual

COMPATIBILITY
Element is generally compatible with terminal devices that accept 5V Envelope EMG signal and 7.4V power inputs.
