iCenta Controls Ltd

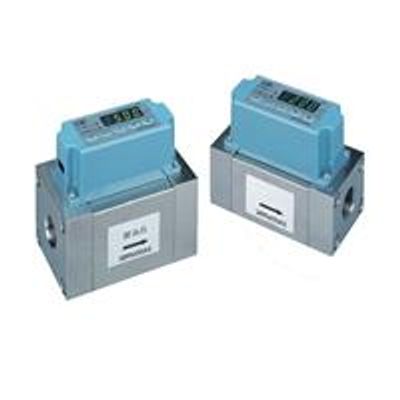

- Model CMS Series - Gas Mass Flow Sensor

From

0

The CMS is a highly reliable and versatile series of gas mass flow meters that uses a µF (Micro Flow) sensor as its sensing element. The µF sensor is a MEMS thermal mass flow sensor capable of measuring ultra low flow rates. The integration of the µF sensor and advanced channel design technology has achieved high accuracy and high rangeability at a low cost.

Features of the CMS Gas Mass Flow Sensor include:

  • Micro flow sensor offers high accuracy of ±3% RD (standard model)
  • High resolution of 0.1 L/min
  • High level of accuracy
  • Micro flow sensors
  • Suitable for a range of gases

  • flow rate/integrated flow rate indication
  • analog ouptut,
  • event output
  • analog output scaling
  • Micro flow sensor eliminates need for straight run piping upstream of meter
  • Up to five CMS units can be connected to a single dedicated CMW100A multi-channel indicator

  • air
  • nitrogen
  • oxygen
  • argon
  • hydrogen
  • helium
  • carbon dioxide
  • propane
  • butane and more…

The CMS Gas Mass Flow Sensor is a highly reliable and versatile series of gas mass flow meters that uses a µF (Micro Flow) sensor as its sensing element.

Specification Detail of the CMS Gas Mass Flow Sensor:

  • Pipe Size : DN6 – DN25
  • Material Body : Aluminium & stainless steel
  • Flow Range : 0.5 to 1500 l/min
  • Accuracy : 0.2% 0.5% 1% dependant on gas on range
  • Operating Temp Range : -10 to 60ᵒC
  • Pressure Range : 0.07 -1Mpa
  • Outputs & Comms : 4/20mA 0-5V 1-5V + 2x pulse user selectable
  • Insertion / Inline : Inline
  • Gas Type : Air, nitrogen, argon, carbon dioxide, oxygen, methane, helium hydrogen
  • Applicable Liquids : N/a
  • Power : 12-24VDC
  • Approvals : CE
  • Connection Type : 9/16 – 18 UNF Rc ¼” ¼” – ½” 1” Swagelok 1/3 VCR or equivalent
