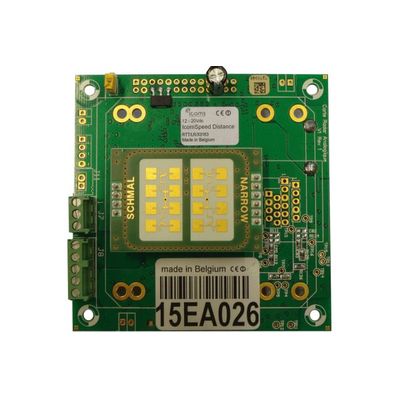

IcomSpeed - Distance Doppler-FSK Speed Sensor
Compact and very energy-efficient, the IcomSpeed-Distance Doppler-FSK speed sensor will easily integrate into your application. It measures the speed and the distance to the target and transmits it on its RS-232 output. It is also equipped with an open collector for which the trigger speed and distance thresholds can be set.
Most popular related searches
- Small size, very easy to integrate into your design
- RS-232 input/output
- Configurable “open drain” output
- Min. power consumption: 52 mA
- The function “distance measurement” allows many different applications, among which vehicle counting in two directions
- Reach
- adjustable – Maximum range:
- personal vehicles: 90m
- trucks: 200m
- Detectable speed
- from 5 to 300 km/h
- Detection direction
- adjustable: approach, receding or bidirectional
- Unit size 80 x 80 x 18,5 mm
- Weight 90 g
- Operating temperature from -20 °C to + 75 °C
- Power supply 12-20 V DC
- Power consumption depending on configuration (min. 52 mA at 12 V DC)
- Frequency K-band: 24.125 Ghz
- Transmitting power < 5 mW
- User output
- RS-232 interface
- two open drains, max. 90 mA/45 V, fuse protected
- Antenna : 38° x 45°
- Precision: speed: 98 % – distance: +/- 2 m – counting: 96 %
- Baud rate: 9600 to 57600 bps
- Protocol: Text menu or “machine to machine”
