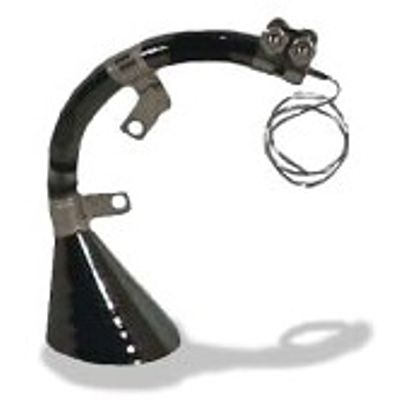

Perkin Elmer/Sciex - Model 201 -ICP-MS Electron Multipliers Used in the Sciex ELAN5000 (Unmounted), 500 & 200
DeTech multipliers are manufactured from a lead glass suitably processed to yield an efficient secondary emitting layer on the inner surface. Each electron multiplier is tested before shipment to ensure its performance is within specification. Each multiplier is delivered with a quality control label indicating its model number, test voltage, gain at that voltage, bias current at the test voltage and the date of shipment.
Most popular related searches
- Maximum Bake Temperature 300°C
- Maximum Operating Temperature 200°C
- Mode of Operation Pulse Counting
- Typical Gain at 2200 Volts 5 x 107
- Typical Bias Current >18 Micro Amps
- Resistance 40-120 Meg Ohms
- Maximum Linear Output Current 10% of Bias Current
- Dark Noise <.05 cps
- Pulse Height Distribution >150%
- Pulse Width >18-20 nSec
- Rise Time >3-5 nSec
- Store detectors out of sunlight sealed in Nitrogen filled bag.
- When installing detector into instrument use powder-free finger cots or gloves.
- Before running samples follow the preconditioning procedure.
- If detector becomes contaminated with dust or oil, clean in isopropyl and dry in a 150°C oven for 30 minutes.
