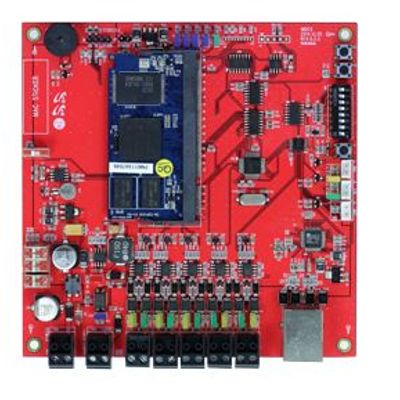

IDTECK - Model iMDC -32 Doors Access Control Panel

• Up to 32 Door Access Control Panel. Expandable Up to 32 Readers / 128 Inputs / 128 Outputs. iMDC-RIM (Remote Interface Module): Connect Up to 16 iMDC-RIM per iMDC-MAIN; 2 Readers / 8 Inputs / 8 Outputs; Ethernet (TCP/IP) Communication; Serial (RS485) Communication : Supported in iMDC-RIM v3.00 or later; LED / Buzzer Control : Supported in iMDC-RIM v3.00 or later.
• Programmable up to 27 different Wiegand Data Formats (up to 53 bits)
• Linux Operating System Applied for Higher System Performance and Stability
• Single or Multiple IMDC Network Communication via Ethernet (TCP/IP)
• Easy System Expansion as iMDC-MAIN and iMDC-RIM are Separated
• Redundant System Applied to Provide Stable Performance even during the System Failure
• - Able to set up for Redundant between iMDC-MAIN and iMDC-RIM Ethernet (not iMDC-RIM Serial)
• - User Configurable Relay Output available for device (iMDC-RIM Ethernet) Error
• - Self-Diagnosis of device to automatically reset the system (Watchdog Function)
• Encrypted Data Transmission (AES 256bit) between iMDC-Main and Communication Server
• Up to 200,000 User IDs / Up to 400,000 Event Buffers
• iMDC supports various Global Wiegand Formats (i.e. 26Bit, 32Bit, 34Bit, 35Bit, and 37Bit.)
• Global / Zone / Timed / Soft / Hard Anti-Passback
• Arm/Disarm Function (2~4 Digit)
• 2 Men-Operation Function
• Duress Mode (2~4 Digit)
• Guard Tour Function
• Advanced Security Time Schedule Configuration
• 255 Time Schedules
• Elevator Control
• Configuration Setting per ID
• Time Schedule, Card Usage Expiration Data, Accessible Reader, Door Opening Time, etc.
• Event Priority Setting
• Alerts when Door Opening Time Exceeds and Forced Door Open
• Missing Cards Management
• Supervised 4-State Input (On/Off/Short/Cut)
• Designed to Withstand ESD(Electro Static Discharge) Shock
• Firmware Upgrade via Remote Control
• Compatible Software : IDTECK ENTERPRISE

CPU: 32 bit (ARM Coretex A8) Microprocessor
OS: Embedded Linux
Memory: 512MByte Flash / 256MByte DDR2 SDRAM
ID User: Up to 200,000 Users
Event Buffer: Up to 400,000 Events
Power / Current: DC 12V / Max. 500mA
Temper Switch Input Port: 1 EA
Communication: Ethernet (RIM board and host communication) , RS485 (RIM board communication)
Communication Speed: 10/100Mbps
RIM Board Interface:
16 iMDC-RIM via Ethernet or RS485 / 2 Readers, 8 Inputs, 8 Outputs per Device (Connect Up to 32 Readers, 128 Inputs, 128 Outputs to the Board)
LED Indicator: 22 LED Indicators
Buzzer: Piezo Buzzer
Operating Temperature: 0°~ +65°C
Operating Humidity: 10% to 90% Relative Humidity, Non-Condensing
Dimension (W x H x T): 137mm x 137mm x 18mm
Weight: 135g
Certification: FCC, CE, KC, RoHS, UL
