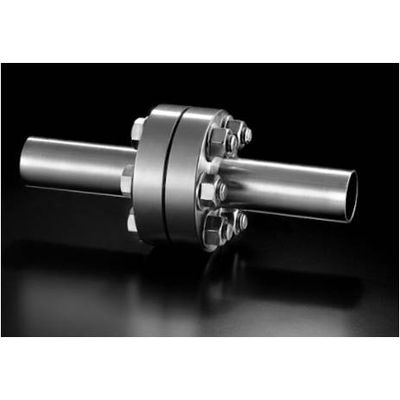

KITZ SCT - IF Flange
KITZ SCT's IF Flange is a specialized component designed for use in various industrial applications. It is crafted from materials suited for wetted areas, ensuring durability and reliability in environments exposed to fluids. The product features detailed specifications and grades, tailored to meet specific industrial requirements. The product code key provides a systematic way to identify and categorize the flange based on its properties and application. KITZ SCT emphasizes the technical attributes of their IF Flange, ensuring that users can rely on its performance in rigorous conditions. This product is part of their comprehensive digital catalog, which includes full specifications and material details to support its applications in various technical fields.
The IF fittings utilize a nickel gasket en lieu of a resin packing seal to achive an air tight seal. IF fittings come in sizes for large flow systems and have a wide temperature range from -200 - 450C.
- Exclusion of the resin packing seal for high purity gas systems. By utilizing a nickel gasket, an air tight seal is achieved. In addition, it is not only corrosion resistant, but resistant to corrosive gas as well.
- It is most suitable for large flow systems. Sizes 10A~80A correspond to the sizing standards of bulk gas delivery supply for the liquid crystal and solar battery industries.
- Piping construction improvement. The gasket fixed pin can be used as a temporary stop, thus preventing the gasket from falling off at the time of the construction.
- By utilizing the rotatable flange, construction is easy even in confined spaces. Wide temperature rating -200~450°C
- Flange/SUS316L
- Rotatable Flange/SUS304
- Gasket/NLCB (Nickel 201)
- Gasket Fixed Pin/A5056
- Bolt, Nut, Washer/SUS304
