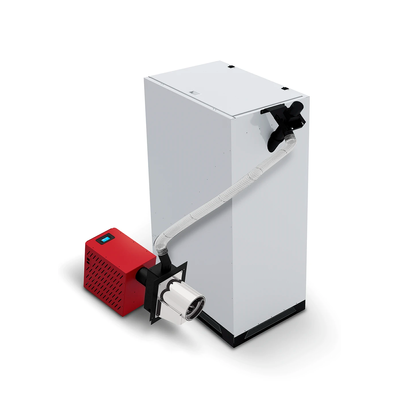

Ifyil - Industrial Type Hot Air Boiler Burner

Fromİfyıl Termo İklimlendirme San. ve Tic. Ltd. Şti.

SHARE

Digital Control PanelcLong Life. Modulated combustion. Easy cleaning & maintenance. Automatic ignition. High efficiency and low emission. High thermal load resistant and replaceable grate. Replaceable and non-welded barrel. Homogeneous distribution of fuel thanks to inclined pellet grate. Back burn control. Air fan integrated into burner box. Digital control panel. High temperature resistant special stainless steel nozzle. Automatic ash cleaning kit with compressor (Optional).

Most popular related searches

carbon monoxide emissions

level indicator

tank level monitoring

temperature sensor

pelletizing system

pelleting system

Capacity - Nominal heat output: kW: 100
Capacity - Minimum heat output: kW: 30
Fuel type: mm: Ø6/L:30 EN Plus A1-A2 Wood Pellet
Fuel loading auger: mm: Ø58mm - L: 1750mm
Fuel tank with level indicator: kg: 400
Electrical connection: Vac / Hz .: 230 / 50
Fuel loading motor: w: 120
Motor fan: w: 77
Ignitor: w: 250
Temperature sensor: -: On the boiler works with digital control panel by being mounted
Flexible loading pipe: -: Flame prrof certified UL94
Manual safety thermostat: -: Available in models with control panel mounted on the boiler
Automatic cleaning system: -: optional
Flame observation glass: -: Available
Dimensions - Product: mm .: 1350 x 2010 x 1925
Connections - Chimney connection inner diameter: mm: Ø 130
Electrical consumption ( average ): W: 2600
Electrical connection: Vac / Hz .: 230 / 50
CO emission according to %10 02 - Nominal heat output: mg / Nm3: 95
% 10 02 CO emission - Minimum heat output: mg / Nm3: 160
Flue gas temperature - Nominal heat output: °C: 226
Flue gas temperature - Minimum heat output: °C: 110
Weight - Product: kg: 550
Weight - Product (Packaged): kg: 550

Fuel Type: Pellet
Heating System: Freestanding Stoves
