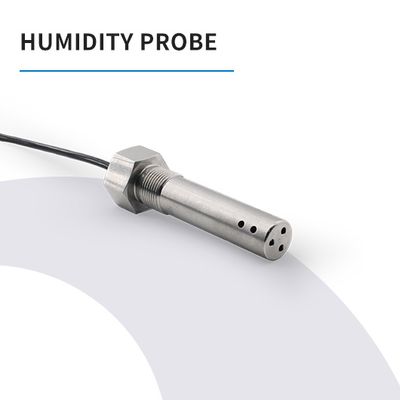

Dabeco - Model DB120 -IIC Digital Signal Humidity and Temperature Probe upto 120℃ with Exchangeable Sensor for Power Cabinet
High precision relative humidity probe DB120 with stainless steel material is designed for duct mounted in power distribution cabinet and other OEM applications. The probe structure allows the sensor to be replaced in case of damage. It boasts excellent reliability withstand a pressure of 4bar and resistance to high temperature upto 120℃, and is suitable for non-condensing environments with rapid temperature changes and the requirement for traceable high-precision measurements.Most popular related searches
humidity probe
relative humidity probe
temperature probe
humidity temperature probe
humidity sensor
temperature and humidity probe
Specification
Measurement Range
Humidity: 0 ~ 100 %RH;
Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)
Accuracy at 0~90%RH@+25 °C(+77 °F)
Humidity: ±2.0 %RH;
Temperature: ±0.2 °C (31.64 ~ 32.36 °F)
Response Time (T63)
≤8 S
Power Supply Input
2.4 - 5.5 VDC
Working Temperature
-40 ~ 120 °C (- 40 ~ +248 °F)
Working current
≤15mA
Interfaces
I²C
Probe material
Stainless steel
