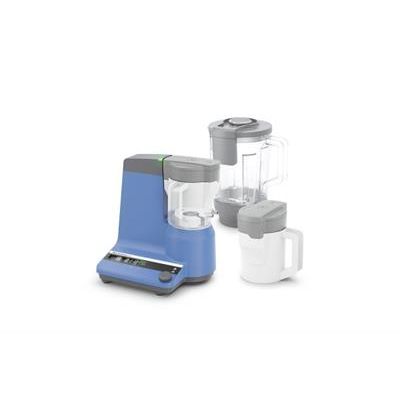

IKA - Model 0025002638 -Multi Drive Basic Mills
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. With the MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation respectively. In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill.
High performance
Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.
Interval operation
The option of interval programming is simple to activate at the press of a button. Interval operation is an asset during the coarse crushing of hard samples or for extra thorough blending.
Integrated cooling
A cooling system is integrated in the milling cup, which allows indirect heat dissipation. Thus, coolant and sample remain separate.
Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task.
Vessels don`t belong to the scope of delivery.
- Process type : batch
- Operating principle : cutting/impact
- Motor rating input : 100 W
- Motor rating output : 80 W
- Speed range : 5000 - 25000 rpm
- Speed deviation : 500 ±rpm
- Circumferential speed max. : 65 m/s
- Usable volume max. : 40 ml
- Feed hardness max. : 5 Mohs
- Feed grain size max. : 10 mm
- Material beater/cutter : stainless steel 1.4034
- Power-on time ON : 3 min
- Milling chamber, can be cooled with water : no
- Mill feed can be cooled in milling chamber with dry ice : yes
- Mill feed can be cooled in milling chamber with liquid nitrogen : no
- Dimensions (W x H x D) : 180 x 170 x 300 mm
- Weight : 2.7 kg
- Permissible ambient temperature : 5 - 40 °C
- Permissible relative humidity : 80 %
- Protection class according to DIN EN 60529 : IP 30
- RS 232 interface : no
- USB interface : yes
- Analog output : no
- Voltage : 220 - 240 / 100 - 120 V
- Frequency : 50/60 Hz
- Power input : 100 W
- Process type batch
- Operating principle cutting/impact
- Motor rating input 1000 W
- Motor rating output 800 W
- Speed range 3000 - 20000 rpm
- Speed deviation 5 ±%
- Useable volume max. 2000 ml
- Feed hardness max. 5 Mohs
- Feed grain size max. 7 mm
- Material beater/cutter stainless steel 1.4034
- Material milling chamber stainless steel 1.4301
- Material (other) PTFE
- Power-ON time 5 min
- Power-OFF time 10 min
- Milling chamber, can be cooled with water yes
- Mill feed can be cooled in milling chamber with dry ice yes
- Dimensions (W x H x D) 300 x 450 x 250 mm
- Weight 8.5 kg
- Permissible ambient temperature 5 - 40 °C
- Permissible relative humidity 80 %
- Protection class according to DIN EN 60529 IP 31
- USB interface yes
- Voltage 230 / 220 - 240 / 100 - 120 / 100 V
- Frequency 50/60 Hz
- Power input 1000 W
