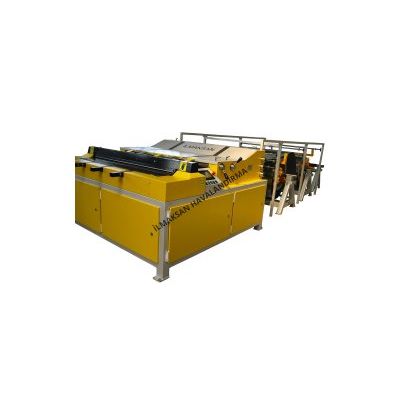

Ilmaksan - Model 1500MM -Duct Forming Machine

SHARE

Our machine is designed to produce ducts by bending and cutting the rolled sheet in the desired dimensions. In order to carry out the same production you need to seperate machines and more personnel. This machine can make a quick, precise and cost-efficient production with in a less room and personnel. Our machine prevents sheet waste and makes you recover your loss nearly upto %20. These production conditions will allow you make profit in a shortterm, increase your market share guaranteed goods. By using the PLC monitor you can enter datas to the machine and monitor the production. Thanks to this screen you can access to any data in the machine. It keeps in its memory how many ducts we reproduced, how many meter of sheet used since from the first day you started to operate the machine.

Most popular related searches
machine monitoring

Label system and flange hiding system can be available as an option in the machine.

  • Duct Forming Machine can make four types of duct as you can see  above.
  • Duct Forming Machine can make flat pattern on the duct, also if you want you can Z pattern or optional U (trapeze) pattern  on the duct.
  • Our machine is automatic and includes a PLC Monitor. You can set duct dimensions, duct type, duct number, margin size on the PLC monitor.
  • Duct Forming Machine can give sheet information that you use how many meters sheet started to be used from the day.
  • Duct Forming Machine can self-lubricate automatic.
  • Maximum sheet width is 1500mm.
  • Duct Forming Machine has 3  sheet enterings.
  • We give 3 decoilers  1,5 mt with Duct Forming Machine.
  • Duct Forming Machine includes speed setting.
  • Duct Forming Machine makes min 12,5 x 12,5 cm and max 500 x 500 cm duct.
  • Duct Forming Machine makes  50 x 50 mm  duct in only 45 seconds.
  • Duct Forming Machine is pneumatic.
  • Self-oiling system.
  • The gears are 7131 German Segmantation Steel.
  • The slitters have two faces.
  • Label system can be used upon requested.
