RayClouds - Model L-Series -Imaging Photometer
L-Series Imaging Luminancemeter is ideal for high precision, high speed luminance measurement. L-Series of Imaging Luminancemeter is equipped with 2 million, 16 million and 20million pixel resolution CMOS detector, provides excellent luminance test solutions. Widely used in luminance measurement of FPD, automotive panel luminance analysis, etc.
Most popular related searches

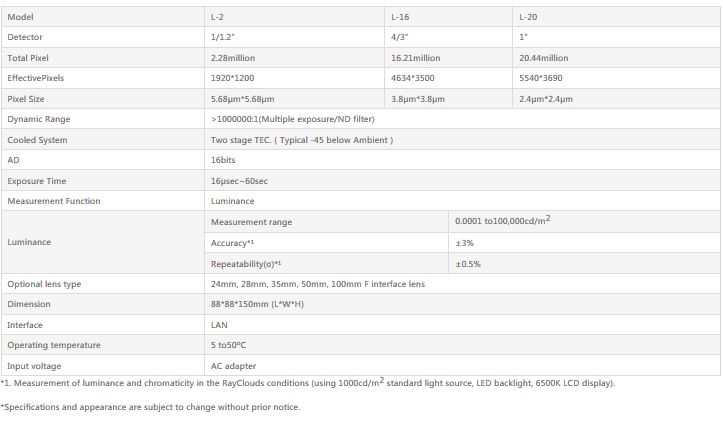

- L-Series Imaging Luminancemeter is equipped with 2 million, 16 million and 20million pixel resolution CMOS detector , provides excellent luminance test solutions.
- L-2 measurement speed up to 100FPS at full resolution, making it ideal for high precision, high speed measurement applications.
- L-16 features high frame rate and 128M DDR buffer memory, even in low configuration operating environments, it can be measured quickly.
- L-20 with an ultra-high resolution of 2.4um, back-illuminated sensor and it can measure noise as low as one electron.
- Support for reading and merging arbitrary partial images (ROI).
- Multiple exposure and ND filters to achieve a wide range of measurement and up to 1000000:1 contrast.
- L-Series is equipped with a Y filter.
- Uniformity of Flat Panel Displays
- Backlit Keyboards
- Mobile & Backlight Uniformity Analysis
- Avionics and Automotive Panels & Ambient light Analysis
- Luminance Analysis
- LED, Lens Beam Analysis
- LED Lighting Products
- Glare analysis of roads, indoor, tunnels, etc.
