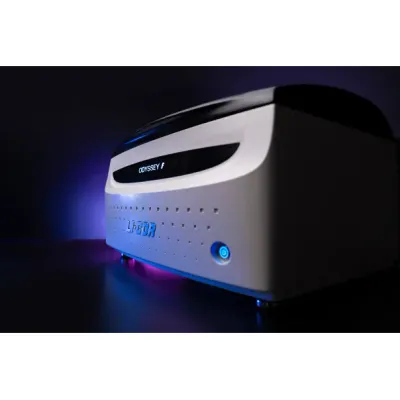

LI-COR Odyssey - Model F -Imaging Systems for Advanced Fluorescent Imaging
The Odyssey F Imaging Systems from LI-COR Biotech are designed to enhance laboratory capabilities with advanced imaging technology focused on sensitivity and dynamic range. These systems offer dual near-infrared (NIR) laser technology for heightened throughput and performance in quantitative imaging applications. The inclusion of visible fluorescence lasers allows for expanded multiplexing options, catering to plate-based assays and whole slide imaging. Available in 3- or 10-channel configurations, the Odyssey systems deliver faster scans and improved data reliability, supporting qualitative analysis beyond Western blots. With compatibility for various assays due to its extended focus offset range, the Odyssey F systems are optimized to leverage LICORbio reagents for the highest quality results. Researchers can choose between Image Studio™ and Empiria Studio® software packages to meet their laboratory needs, ensuring flexible or workflow-based data analysis.
Accelerate Discoveries In Your Lab
3- and 10-Channel Odyssey F Instruments
Odyssey F instruments not only offer you greater sensitivity and unmatched dynamic range at the click of a button, but both models can complete scans twice as fast as their LICORbio predecessor, and significantly faster than competitive laser-based instruments. The dual near-infrared (NIR) laser Odyssey F gives you more throughput and higher performance than other imagers, and the best opportunity for quantitative imaging. With the addition of two visible fluorescence lasers, the next tier of Odyssey F will further enhance your insights. It adds powerful laser-based multiplexing options for plate-based assays, slide imaging, and more to your lab’s capabilities. You don’t have to imagine greater opportunities for discovery. The Odyssey F delivers.
Faster Scans
Scan in minutes what once took hours. Twice as fast as the industry-leading point scanner.
A Greater Value
Supports a wide range of assays beyond the best qualitative Western blots.
Tailored to Your Needs
Customize your approach to fluorescent imaging with a 3- or 10-channel NIR instrument.
Beyond the Essentials
Get greater throughput with each scan, for more accurate, reproducible data.
Unmatched Dynamic Range
You’ll experience greater sensitivity and enjoy higher data confidence.
Broader Compatibility
With its enhanced focus offset range, each Odyssey F is compatible with a wider variety of available plates.
Optical System
- Image Field Size
- 25 cm W × 18 cm D (9.8” W × 7.1” D)
- Resolution
- 21-337 µm
- Dynamic Range*
- Auto: >6 logs
- Detectors
- Silicon avalanche photodiodes
- Laser Lifetime
- 40,000 hours of operation
- Class 1 Laser Product
- Light Sources
- Solid-state diode laser at 488 nm (Up to 4 channels)
- Solid-state diode laser at 520 nm (Up to 3 channels)
- Solid-state diode laser at 685 nm (Up to 2 channels)
- Solid-state diode laser at 785 nm
- Focusing
- Microscope is adjustable -1 to 5 mm above the scan bed to obtain best signal-to-noise ratio.
Size and Weight
- Dimensions (Instrument Only)
- 53 cm W × 62 cm D × 37 cm H
- (21" W × 24.5" D × 15" H)
- Height with lid fully open
74 cm (29")
- Weight
- 32 kg (70 lbs)
