Imbrium - Model SciClone -Hydrodynamic Separator
The SciClone Hydrodynamic Separator is designed to capture and retain sediment, trash, and hydrocarbons, accepts inlet pipes from multiple angles, and comes equipped with an internal bypass. The SciClone is manufactured from polypropylene components which are non-corrosive and extremely durable.
Most popular related searches
stormwater treatment system
baffle wall
TSS removal
stormwater treatment
outlet weir
oil skimmer
sediment removal
pond system
wetlands
skimmer
IDEAL USES
- Sediment (TSS) removal
- Debris and small floatables capture
- Pretreatment for filtration, detention/retention systems, ponds, wetlands, and bioretention
- Retrofit and redevelopment projects
The SciClone is designed to capture and retain sediment, trash, and hydrocarbons, accepts inlet pipes from multiple angles, and comes equipped
with an internal bypass. The SciClone is manufactured from polypropylene components which are non-corrosive and extremely durable.
How does it work?

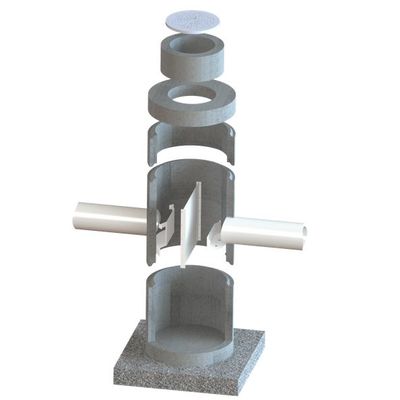

- The SciClone Separator’s inlet flow splitter redirects inlet flows away from the center of the chamber in two directions along the system’s perimeter creating two swirling vortexes.
- Floatables are trapped by the baffle wall.
- Fine sediment settles down to the bottom of the sump chamber, maximizing sediment collection.
- As water passes under the oil/floatables skimmer, flows travels upward to the crest of the outlet weir.
