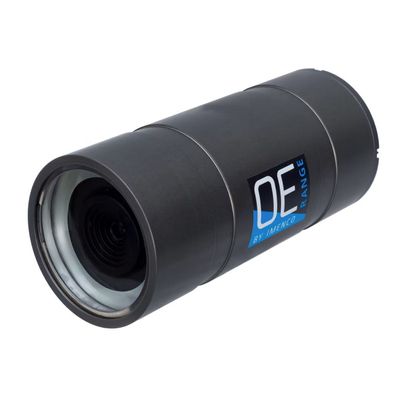

Imenco - Model OE17-110 -Subsea High Definition Camera
The camera utilises a 1/2.7” CMOS sensor and supports both H.264 and MJPEG video compression standards for transmission over a 10/100 Base TX Ethernet network connection. Both video streaming and image settings such as size, quality, bit rate, white balance, gain and backlight compensation can be controlled using the intuitive Imenco web interface. The OE17-110 camera, which is rated for operations at 500 metre water depth, is manufactured with a rugged aluminium anodised housing and scratch resistant borosilicate glass port. At only 204mm long and 90mm in diameter the OE17-110 is an extremely compact camera. The OE17-110 camera has been designed as a cost effective option for general purpose viewing in shallow water applications including: aquaculture and caged fish farming, marine renewables, stinger and pipe-lay systems, mega yacht and cruise vessel hull mount as well as observation class ROVs.
- 1920 x 1080 (2MP)
- 74° Wide AOV
- Aquaculture
- Marine
- Renewables
- Pipe-lay and Stinger Operations
- Observation Class ROVs
- Mega Yacht & Cruise Vessels
- General Observations Tasks
Performance & Electrical
Horizontal Resolution: ≥800 TVL/PH
Light Sensitivity: 2 x 10-3 lux @ 10% mean sensor level (faceplate illumination)
Minimum Scene Illumination: 1.4 x 10-3 lux (monochrome)
Signal to Noise Ratio: 70 dB
Sensor: 1/2.7” Progressive CMOS
Power Input: 16 to 30 VDC, 8 Watts (max) or IEEE802.3af/at PoE Class 0 compliant
Inrush Current: 1A (16 to 30 VDC configuration)
Digital Zoom: 48:1 Digital
On-board Storage: Micro SD / SDHC / SDXC card slot (16GB fitted)
Video & Network
Sensor Resolution: 1920 x 1080 (2MP)
Video Compression: H.264 and Motion JPEG
Video Streaming: Upto 4 simultaneous streams
Frame Rate: 30 fps @1920 x1080
Interface: 10/100 Base TX Ethernet
Protocols: IPv4, IPv6, TCP/IP, DHCP, HTTP, HTTPS, RTSP/RTP/RTCP,
Onvif support, Milestone XProtect compatible
Optical
Lens: 3.6mm, F2.1 fixed focus
AOV (Diagonal): In air: 109°, In water: 75°
Iris Control: Automatic
Focus Range: 0.3mm to infinity, fixed (in air) 0.4mm to infinity, fixed (in water)
Mechanical
Dimensions: Diameter: 90mm (main body) Length: 204mm (excl. connector)
Weight: In air: 1.5 Kg, In water: 0.2 Kg
Housing Material: Aluminium alloy, 6082-T6, clear anodised (other options available)
Connector: Subconn DBH13M (other options available)
Environmental
Operating Depth: 500 msw
Temperature: Operating: -5 to 40°C Storage: -20 to 60°C
Shock: 30G peak acceleration, 25ms half sine duration, on all three axes
Vibration: 10G, from 20 to 150HZ on all three axes
Electromagnetic Compatibility: BS EN 61000-6-3: 2007 Emission and BS EN 61000-6-1: 2007 Immunity
