IMFO - Sloped Bottom Vertical Tanks
From Tank Designs and Specifications

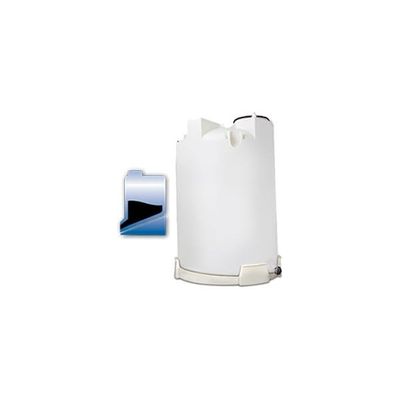

Traditional tank maintenance can be a challenge with many chemicals – so Poly has developed a unique sloped bottom tank system that greatly minimizes the hazards associated with traditional vertical tank maintenance. With Poly Processing’s Sloped Bottom Integrally Molded Flanged Outlet tank, or IMFO® system, the flange is molded while the tank is processing, making it a stress-free part of the tank. The floor of the tank is sloped towards the IMFO giving the user the greatest possible full drain system in a vertical tank design.
-
Most popular related searches
Product Details
The Sloped Bottom IMFO’s advantages are many:
- The flange is at the bottom of the tank and the tank floor is sloped, therefore complete full drainage is achieved below the tank knuckle radius, which eliminates the need to enter the tank for cleaning.
- One-piece construction enhances long-term performance of the tank, since it doesn’t compromise the tank hoop’s integrity or structural design.
- In aggressive applications, the complete flange face is protected by the antioxidant OR-1000™ system.
- The Sloped Bottom IMFO allows even heavier materials such as sludge, FOG, and thicker chemicals to discharge completely.
Specifications

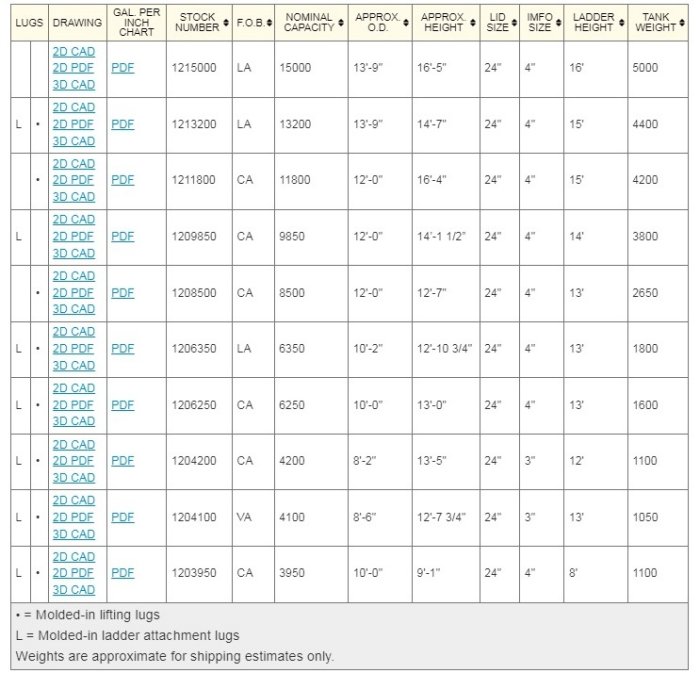

Sloped Bottom Vertical Tanks with IMFO®
All of the products listed below except for the 13’-9″ diameter tanks are available from all 3 manufacturing locations. Contact customer support for more information.

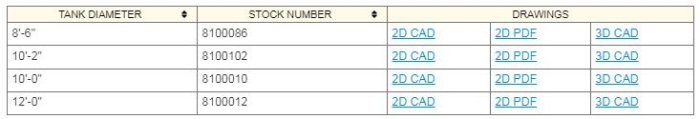

Crosslinked PolyBase

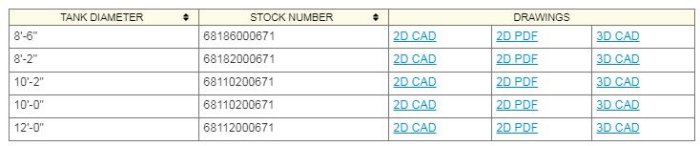

PolyBase IMFO and Sloped Bottom IMFO support systems are available for all Vertical Tanks with IMFO and Sloped Bottom Tanks with IMFO. Please contact Poly Processing Company for your PolyBase needs.
Downloads related to this product
Videos related to this product
-
Sloped Bottom IMFO Tank - Video
Poly Processing`s Sloped Bottom IMFO tank is the perfect solution to store heavier chemicals, higher viscosity liquids or other materials that need full drainage.
