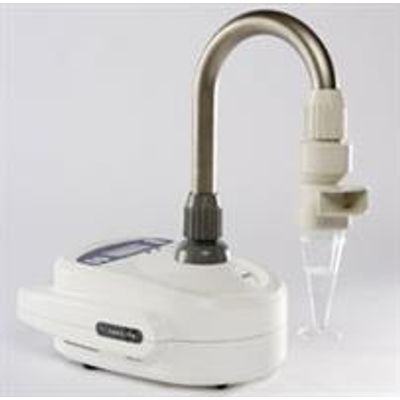

IMICROQ - Coriolis Micro Air Sampler

Can be used indoor and outdoor. Thanks to the cyclonic technology, Coriolis µ is adapted to any scientific research in microbiology: toxins, virus, bacteria, molds, pollens, spores and even more!

Applications

• Monitoring of Biological Contamination during production in cleanrooms
• Determination of the exposure to biological agents of workers
• Monitoring of pathogenic agents indoors and outdoor

Application fields

• Hospitals & Healthcare
• Pharmaceutical industry
• Industrial sites & Farms
• Offices

Flexible and easy set up
In order to be used for a large range of applications, the parameters of the Coriolis µ can be easily set through a simple and intuitive interface. The user will set the air flow rate (100 to 300l/min), the time (1 to 10 min) and the delay before starting the run (1 to 100 minutes). If the user use the “Data Management” option, he will also have the possibility to enter its own user code and the data will be saved into the internal memory. Furthermore the equipment is only 3 kg and can be easily transported. You can either transport it assembled or into its transport bag, especially adapted to resist to shocks. Coriolis µ is also compact and will not disturb your daily activity in your lab.

Traceability
The equipment can be completed by a “Data Management” option: thanks to its internal memory, the Coriolis µ will save all the parameters (user, date, air flow rate, time…) for each collection. You can then transfer these data to a computer through a Bluetooth connection according to 21CFR part 11 recommendations.

Sterile consumables
In order to avoid any cross contamination, it is provided sterile and single use cones with screw caps: either pre-filled with collection liquid or empty, it is ready to use and certified sterile (single or double packed).

Easy decontamination
Sterility and no cross contamination are crucial in the context of air quality control, that is the reason why the parts of the air sampler which are in contact with air and collection liquid are either autoclavable (air intake and cane) or single use (consumables). The surface can be disinfected by ordinary disinfectants. The equipment can also undergo hydrogen peroxide vaporisation to be totally decontaminated before being entered into class A or B.

Validated Method
The Method has been validated by external entities under ISO 14698.

• Particle size > 0.5 µm
• Air flow rate: 100-300 l/min
• Sampling time: 1-10 min & up to 6 hours*
  * Requires “Long time monitoring option”
• Liquid sample: 10-15 ml
• Size: 22x33x36 cm
• Weight: 3 kg
• Power supply: 100/240 V
• Waterproof: No
• Autonomy on battery: aprox. 2 hours
• Operation Temperature: +5 °C a + 45 °C
• Screen: LCD 4 lines
