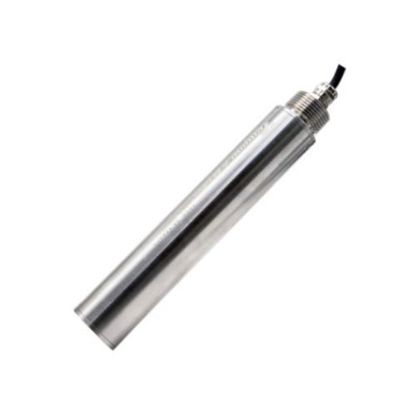

Tengine Innovation - Model TSS -Immersion Turbidity / Suspended Solids Concentration Meter
The TSS Turbidity / Suspended Solids Concentration Meter consists of a transmitter and a sensor. The sensor can be easily installed in a tank or natural water body. The TSS meter automatically compensates for interference caused by contamination. Bidirectional digital communication between the transmitter and the sensor prevents signal attenuation and allows for greater distance between the sensor and transmitter. This product can be used to measure turbidity at locations such as the inlet and outlet of wastewater treatment plants and related industrial facilities.
Most popular related searches
suspended solids level
wastewater treatment plant
suspended solids monitoring
drinking water plant
natural water body
process cooling water
water quality monitoring
cooling water system
wastewater treatment
drinking water quality monitoring
- Measurement of suspended solids concentration at the inlet/outlet of wastewater treatment plants;
- Measurement of turbidity in backwash water from filtration units, as well as turbidity of raw water and effluent from sedimentation tanks at drinking water plants;
- Monitoring water quality in industrial production processes / cooling water systems
- Capable of measuring both turbidity and suspended solids (or sludge) concentration;
- Utilizes dual-beam infrared detection technology;
- Digital sensor with strong anti-interference capability; sensor cable length can reach several hundred meters;
- Plug-and-play sensor with automatic recognition;
- The instrument provides one isolated RS232 digital interface and one isolated RS485 digital interface, supporting standard ASCII and RTU protocols;
- Programmable relay output: any relay can be set for high/low alarm or timer functions;
- Historical data auto-save function, capable of storing and querying up to 10 years of historical data.
Turbidity:
- Range: 0~4000NTU, 0~1000mg/L;
- Measurement unit: NTU and mg/L;
- Resolution: 0.1NTU, 0.1mg/L;
- Accuracy: Standard solution ±3% or ±0.1 NTU, whichever is greater (based on the standard);
- Repeatability: 0.1 NTU or ≤1% (whichever is greater);
- Response time: 2s seconds;
- Calibration: factory calibration, on-site calibration;
