In-situ Marine Optics - Model NTU -IMOview GUI Software for Real-time Data Display

SHARE
IMOview is a graphical user interface (GUI) software designed to facilitate the configuration and real-time data display via serial communication channels. This software is compatible with Microsoft Windows platforms and allows users to seamlessly configure parameters and monitor real-time data streams. The application integrates optical, electrical, and physical specifications into a cohesive interface that meets the needs of industries requiring precise and continuous data observation. Through a straightforward GUI, it enhances user experience in data management, adhering to the requirements of maritime and optical applications. IMOview is backed by In-situ Marine Optics, a company specializing in integrated marine optic solutions.
Most popular related searches
water quality sensor
turbidity sensor
scratch resistance
oceanographic equipment
vertical profiler
fouling control
water quality
suspended particulate
vertical profiling
water turbidity sensor

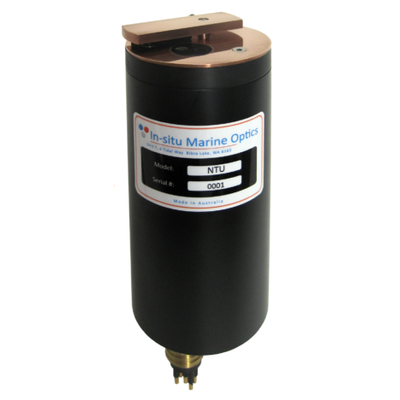

A turbidity sensor designed for underwater applications, including integration into autonomous logging systems and vertical profiling packages.


  •  Suspended particulate concentration monitoring
  •  Non-yellowing, scratch-resistant optics
  •  Resolves 0.05 NTU, with a range of 0 – 400 NTU
  •  Ships with internally stored 4 point Formazin NTU calibration
  •  Anti-fouling copper face-plate and high torque wiper
  •  Internal Real Time Clock, Tilt and Temperature
  •  Pin-compatible with standard oceanographic equipment
  •  Australian designed, manufactured, calibrated and serviced


Scattering Geometry120° nominal

OPTICAL
Detector: Si photodiode
Emitter: LED 850 nm
Calibration: Formazin NTU standard
Range: 0 – 400 NTU (factory customisable)
Resolution: 0.05 NTU

ELECTRICAL
Acquisition: 16 bit ADC
Sampling Rate: configurable up to 10 Hz
Ambient Light Rejection: yes
Protocol: RS-232 @ 19,200 bps
NMEA-style output: yes
Input Voltage: 7 – 28 VDC
Power Consumption: 10 mA @ 12 VDC (150 mA during wipe)
Analog Output: 0 – 4.97 VDC, 2.2 mV RMS
Connector: Micro WET-CON MCBH6M

PHYSICAL
Length: 140 mm (connector + 43 mm)
Diameter: 67 mm
Weight: 630 g in-air, 150 g in-water
Materials: Acetal, Copper, BK7 Glass, SS316
Depth Rating: 300 m
Operating Temperature: 0 to +50 °C
